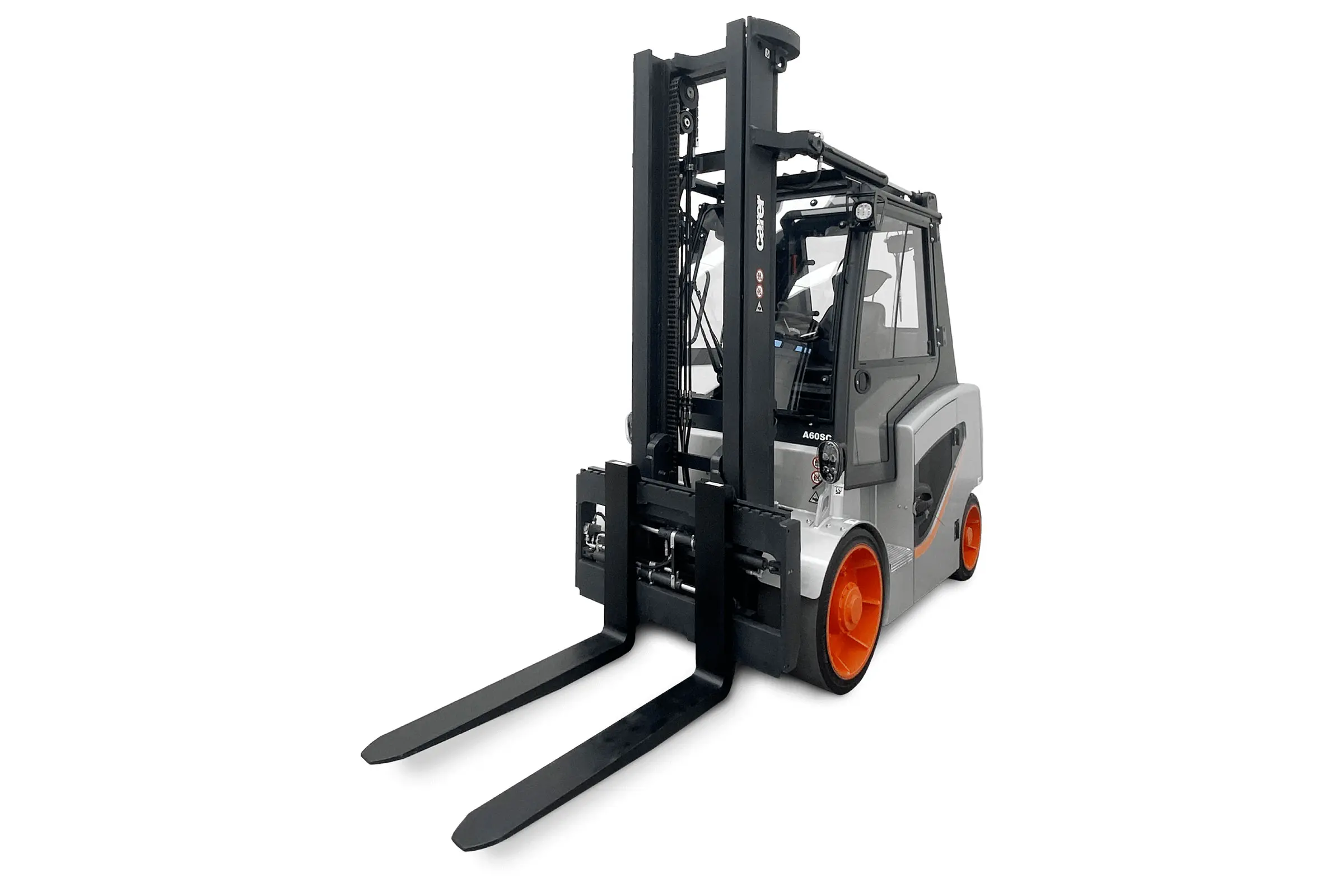

The ASC series forklifts are designed for maximum efficiency in tight indoor spaces, thanks to their compact dimensions.
Operators benefit from a spacious, ergonomic cabin featuring a tiltable, height-adjustable steering wheel and an integrated armrest with intuitive mini levers and control buttons. The elevated seating position and wide-view mast ensure excellent all-around visibility, while easy access is provided by a non-slip step and large grab handle. The mast’s reinforced structure, with laminated profiles and six bearings, offers superior resistance to bending and twisting. Integrated tilt cylinders in the overhead guard enhance load stability and residual capacity. Dual AC motors, managed by advanced electronic inverters, deliver smooth, energy-efficient performance with minimal maintenance. Battery changes are quick and simple, thanks to a convenient side-extraction system.

• Capacity / Centre of gravity: 5.5 – 6.0 – 7.0 – 8.0 tonnes / 600 mm
• Voltage: 96 V
• Tyres: cushion
• 2 AC front drive motors integrated in front axle for fast manoeuvring in tight spaces
• Automatic parking brake
• Electric dynamic braking
• Travel speed: 8.5 mph
• Lifting speed: 0.3 m/s
• Battery: 96 V
  – Pb: maximum capacity 1032 Ah
  – Li-Ion: maximum capacity 600 Ah
• Advanced multifunction display (AMD)
• Automatic rear camera
• High tilt cylinders
• Automatic speed reduction when cornering
• Side battery extraction system
