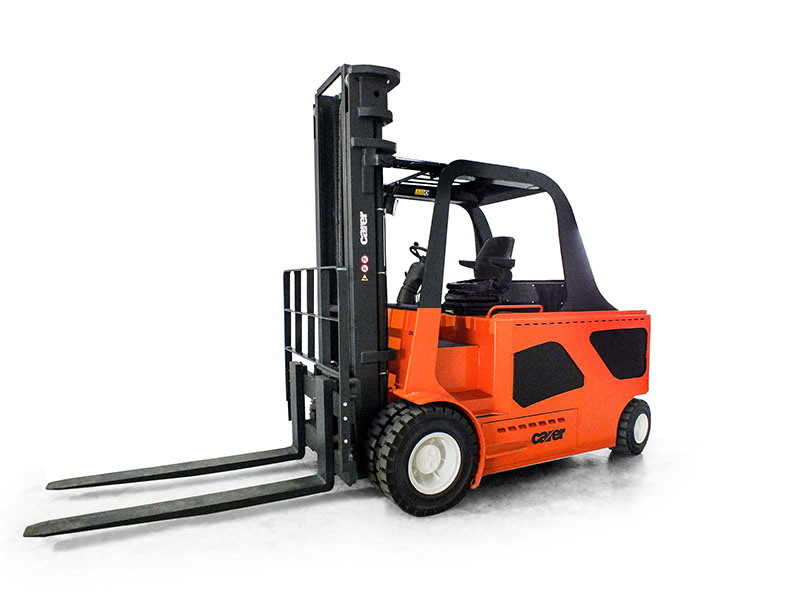

The Z 60-80 H² series electric forklifts are built for high performance, extended operating time, and cost-effective efficiency. Their compact design and tight turning radius make them ideal for navigating narrow aisles and confined spaces without compromising power or reliability. These trucks can be tailored to suit a wide range of applications and are equipped to handle demanding tasks with ease. Despite their small footprint, they offer a spacious, ergonomic operator cabin with intuitive controls and excellent visibility. Hydraulically assisted steering ensures smooth and precise handling, while the electronic braking system—integrated into the front traction motors—delivers strong stopping power with minimal energy use. Regenerative braking captures energy during deceleration, braking, and directional changes, enhancing battery life. The frame is designed to accommodate large battery configurations, supporting long shifts and intensive workloads.

• Capacity / Centre of gravity:

– 8.0 tonnes/ 900 mm

– 9.0 tonnes – 10.000 kg / 600 mm

• Voltage: 96 V
• Tyres: super elastic twins
• 2 front drive motors AC
• Travel speed: 9.5 mph
• Lifting speed: 0,44 m/s
• Battery 96 V – Maximum capacity 1500 Ah
• Advanced multifunction display (AMD)
• Reversing camera
• Automatic parking brake
• High positioned tilt cylinders
• Automatic cornering speed reduction system
