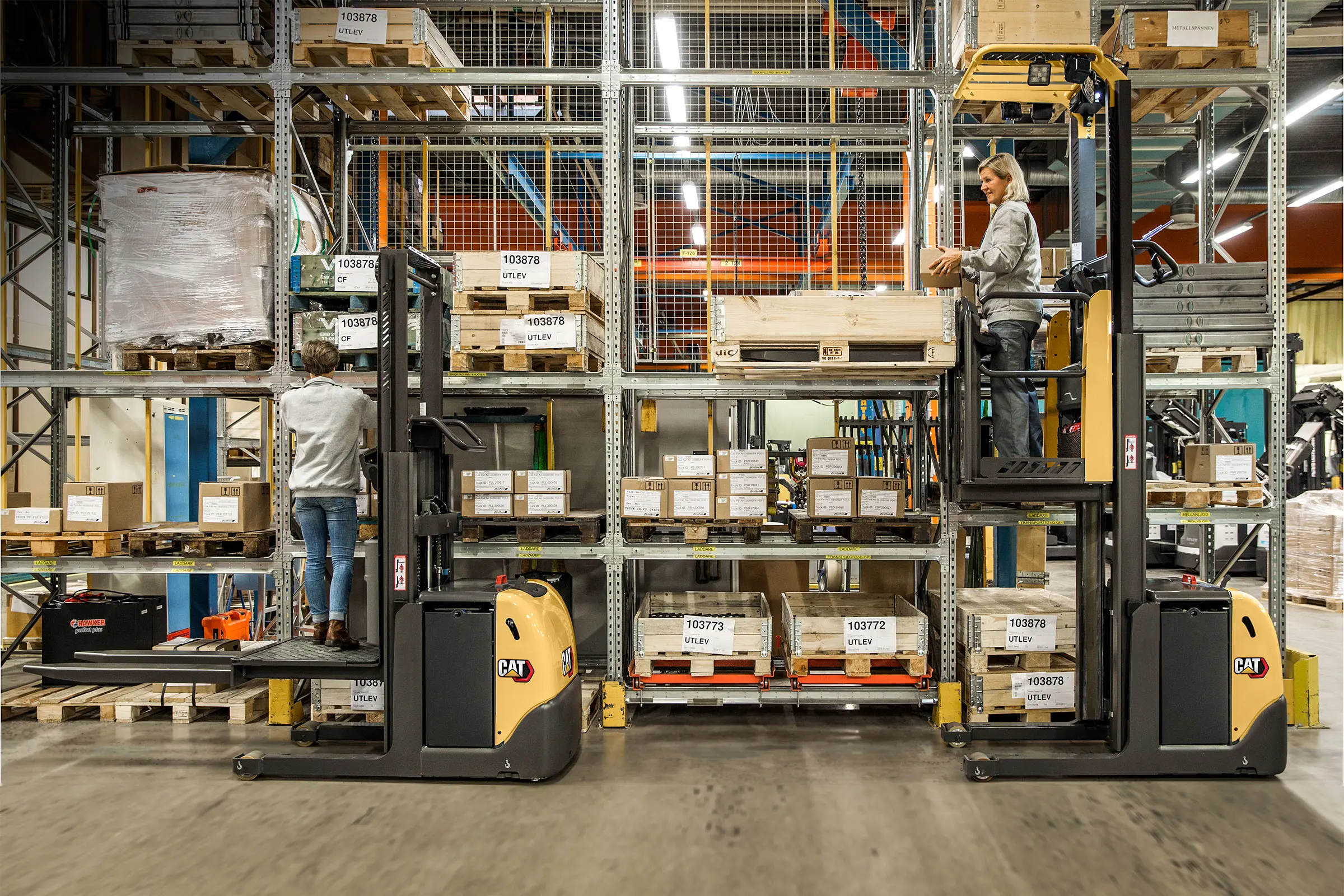

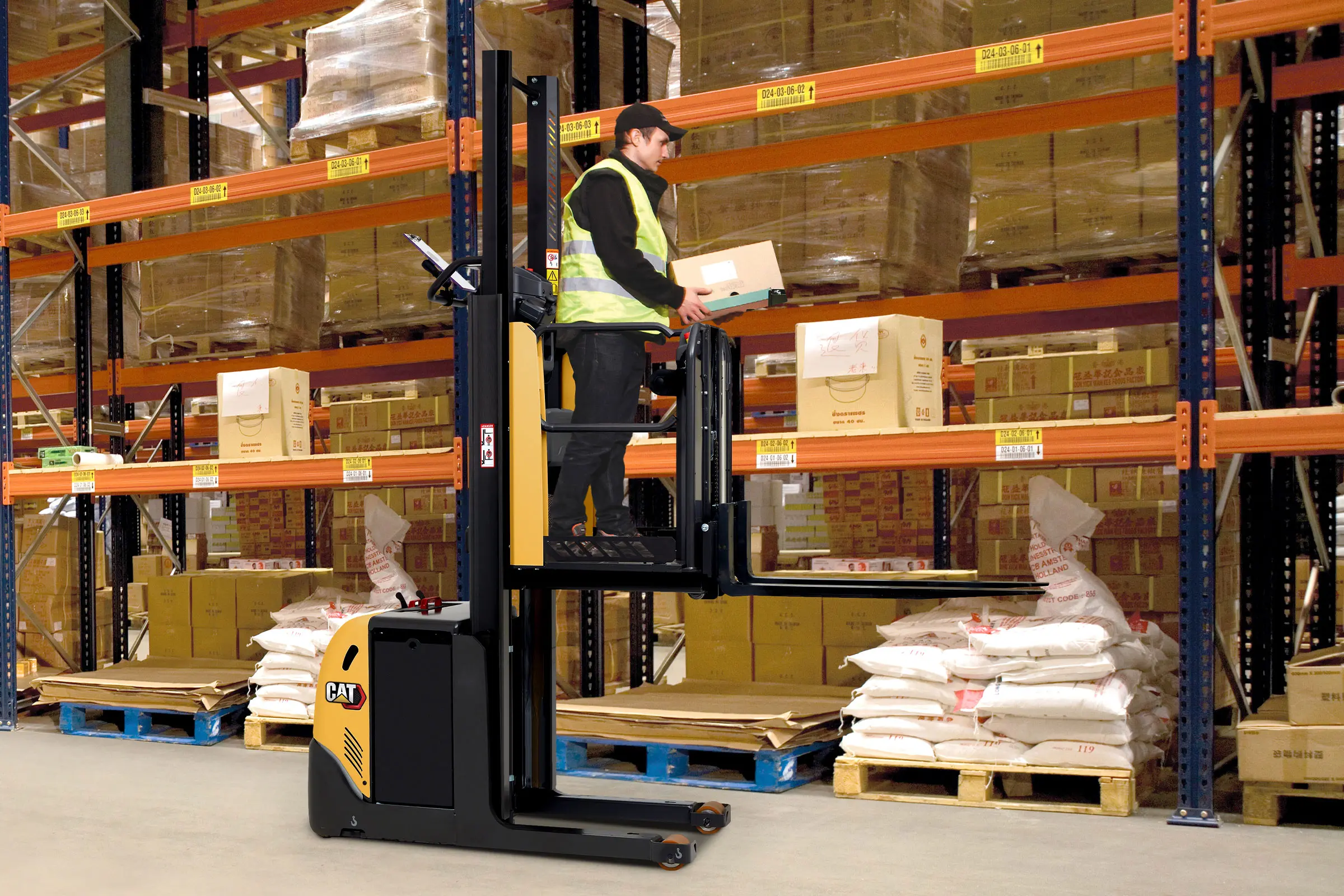

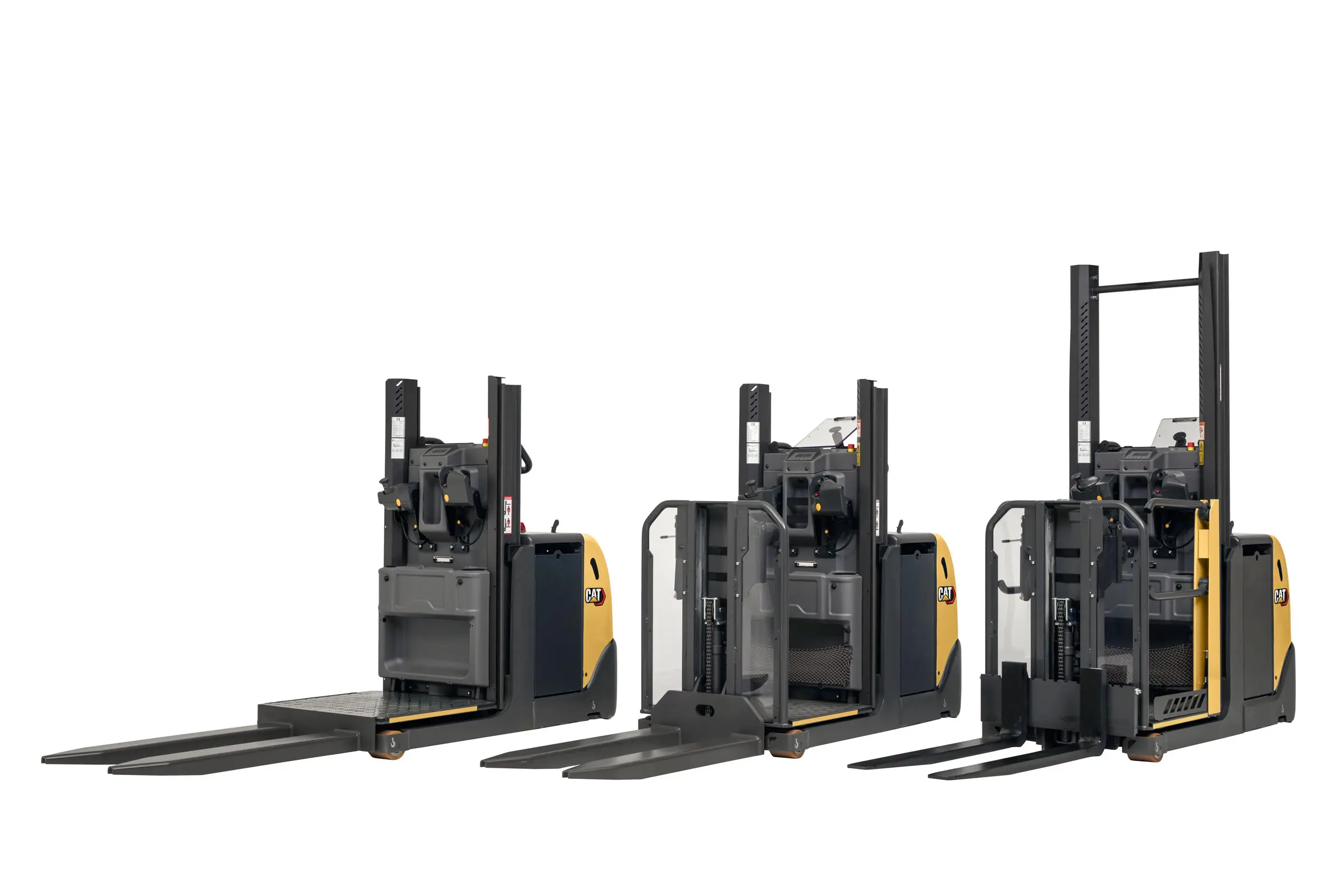

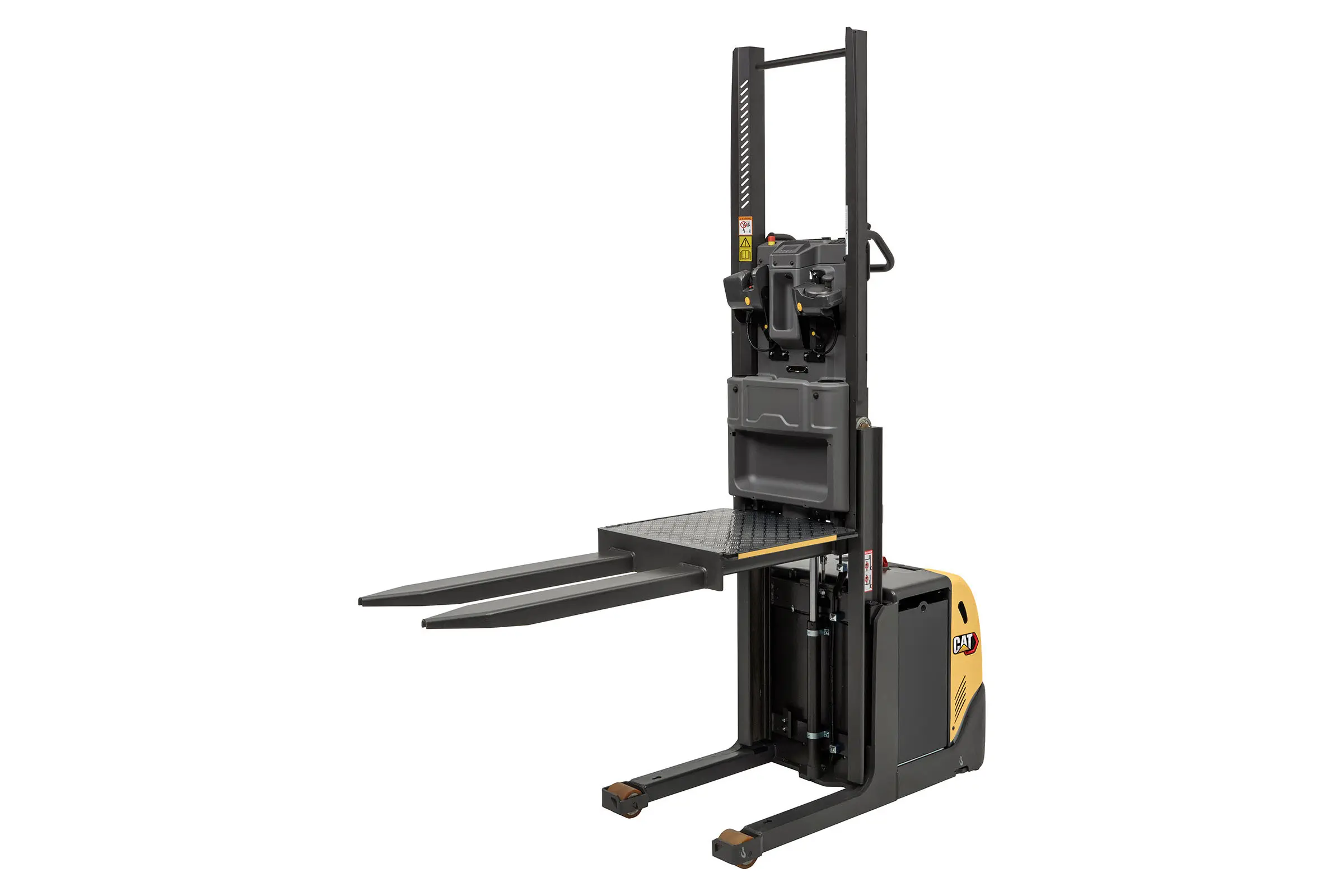

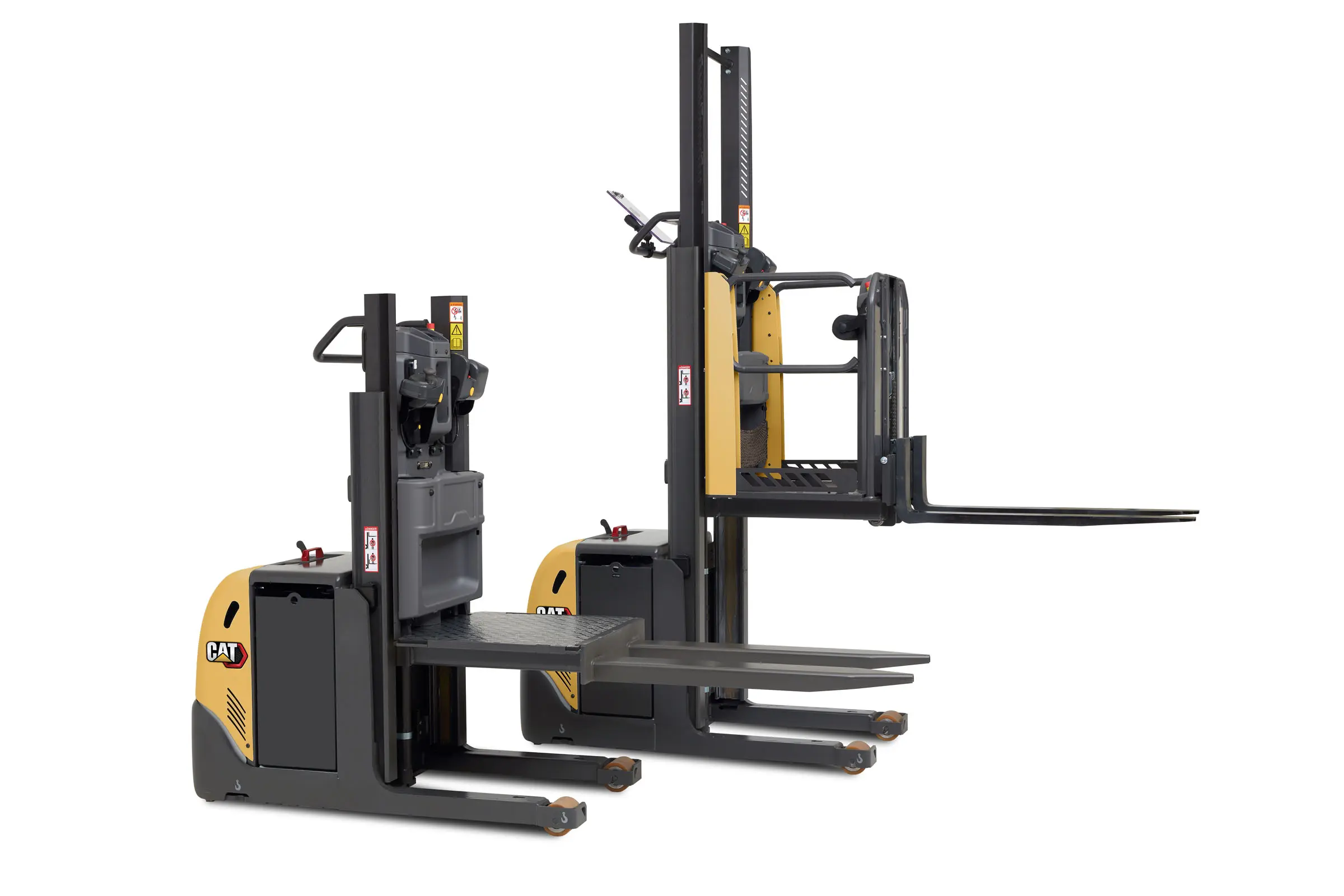

Optimizing warehouse efficiency has never been easier with the NOL10P 2nd-level order picker. Designed for seamless and ergonomic operation, this 24V, 1.0-tonne capacity truck features a 1.2 m or 1.8 m rising platform, enabling fast and effortless access to picking locations up to 2.8 m or 3.4 m.

For enhanced speed and convenience, LiftComfort can be integrated to elevate picking containers, making item transfers quicker and reducing strain on operators. Efficiency is further improved with the industry’s lowest step height, minimizing physical exertion. Movement across the truck remains smooth, thanks to the whole-floor driver presence sensor with a cushioned, slip-resistant mat, ensuring unrestricted walk-through access.

Designed for Operator Comfort and Control

With an advanced user interface, the right-hand control unit is ergonomically designed for maximum comfort and positionally adjustable to suit operator preferences. This setup allows precise control over truck functions, while the left hand remains free to operate the midi steering wheel, ensuring effortless maneuverability.

Safety is prioritized with the integration of a PoweRamic mast, automatic speed reduction, and SecurGate side gates, all contributing to secure operation and stability.

Built for Longevity and Cost Efficiency

Constructed with durable materials, the NOL10P is designed for a long operational life with minimal maintenance costs. Accessible service points and customizable driver settings ensure continued reliability while reducing downtime.

Lower Cost of Ownership, Safety, and Ergonomics

• Latest AC drive motor technology provides greater torque, efficiency, and control with minimal maintenance.
• PIN code log-in prevents unauthorized use.
• Multifunction Colour Display shows clear truck status information to the operator.
• ECO mode slows operation slightly while saving approximately 5-6% on energy consumption.
• Easy access to motor, battery, and other components speeds up checks and servicing.

Unmatched Productivity

• Rising platform (1.2 m or 1.8 m max) allows quick access to heights of 2.8 m or 3.4 m for efficient picking.
• LiftComfort (standard on 1.8 m platform, optional on 1.2 m) raises the picking container for faster transfer of picked items.
• Operator can quickly change performance mode within their allowed range to match different handling situations.
• Battery discharge indicator (BDI) helps plan recharging with minimal disruption to workflow.
• Fully integrated Li-ion technology allows continuous operation using fast opportunity charging during short breaks.
• Choice of Li-ion or lead-acid truck versions available.

Design and Operator Comfort

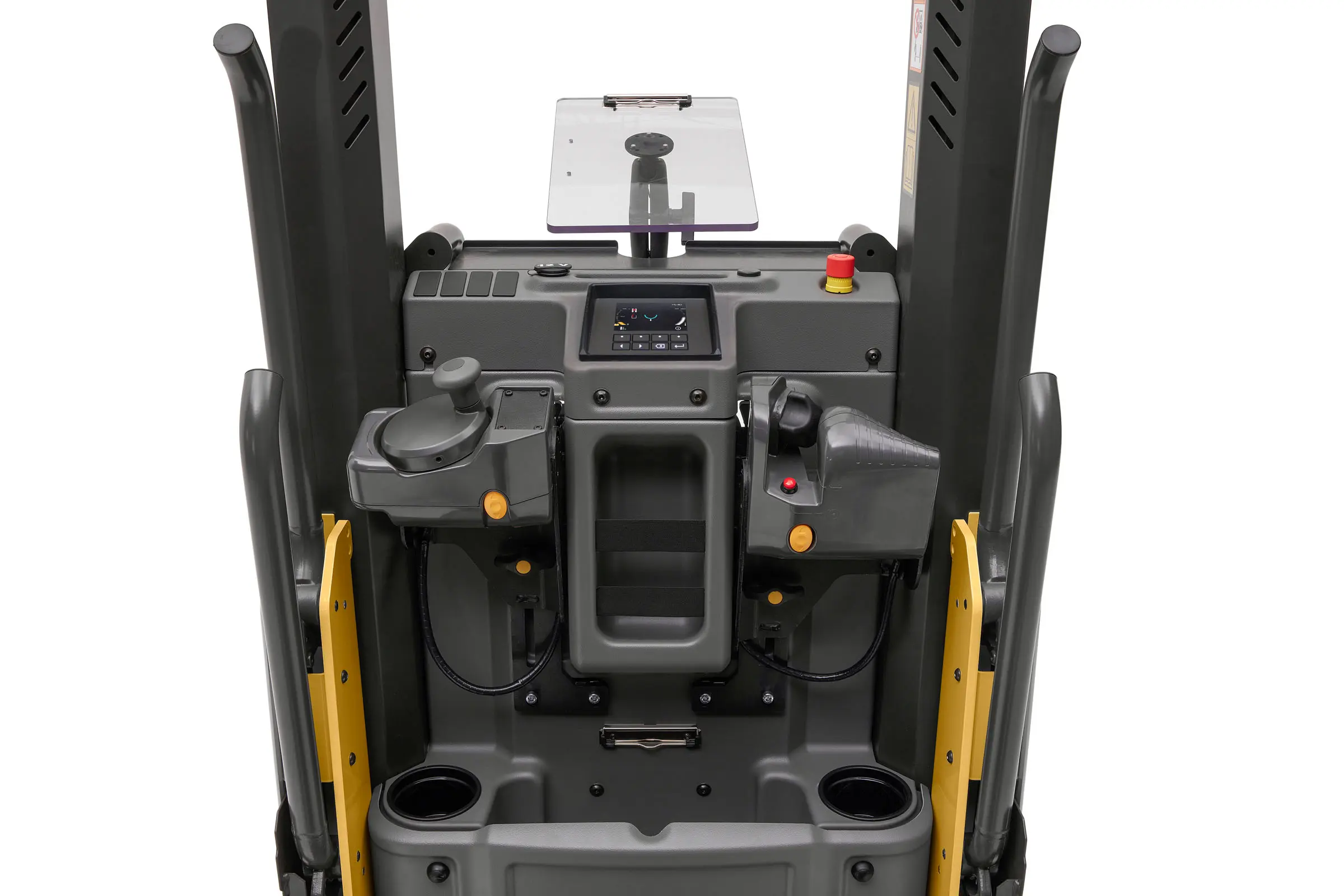

• Two-piece control panel integrated into chassis for a compact design with more operator space.
• Right-hand control unit offers excellent anatomical fit, positional adjustment, grip, and support for precise operation.
• Whole-floor driver presence sensor with cushioned, high-grip mat ensures comfortable operation, obstacle-free walk-through access, and prevents disabling of the ‘deadman pedal’ function.
• Lowest step height in the market (160 mm) reduces strain—saving an average of 6,204 m of climbing per year compared to competitors.
• Optional comfort cushion (on LiftComfort trucks) is adjustable for leaning or sitting during travel.
• Optimized cabin size and shape provide comfortable space with easy reach of controls and back support.

Safety Features

• Automatic speed reduction adjusts travel rate based on steered wheel angle and platform height for stability and safety.
• SecurGate side gate system (standard on 1.8 m platform, optional on 1.2 m) reduces fall risk and prevents truck operation if gates are open above 1.2 m.
• Optional step-out warning (1.8 m platform only) sounds an audible alarm and displays a message if gates are open when the platform is not at its lowest position.
• Multiple storage compartments keep operator’s equipment close at hand while preventing hazardous clutter.
• PoweRamic mast enhances visibility for safe, accurate operation.
• Steel battery rollers ensure quick and secure changeovers.
• Optional overhead guard adds safety and allows for easy accessory attachment.
