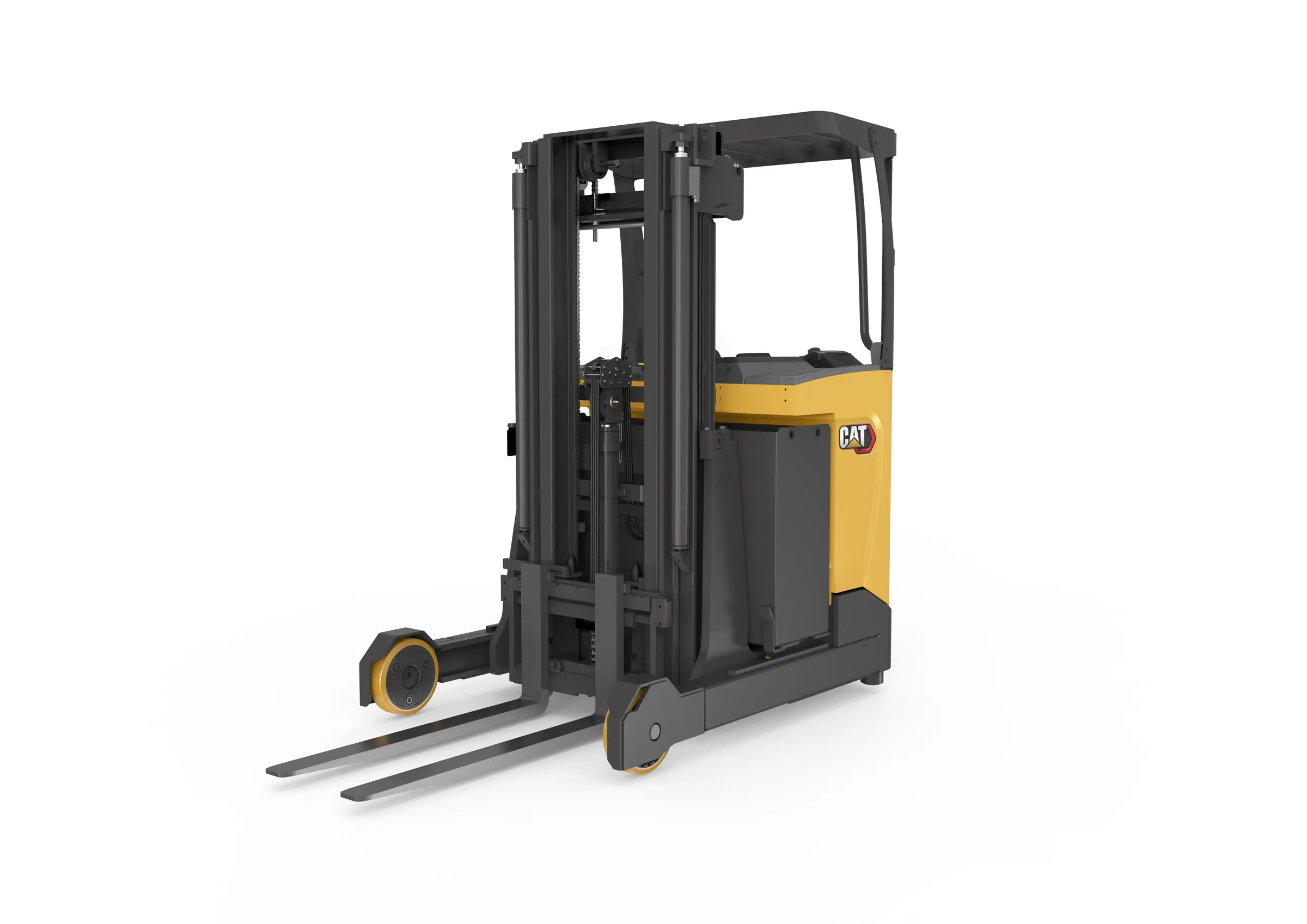

The truck is designed for customised comfort, featuring adjustable armrests and floor height for an ergonomic fit. Operators benefit from Palm Steering and a multifunctional joystick that enable precise control with minimal effort, while a tilting seat eases neck and back strain when handling loads at height.

Intelligent drive and hydraulic systems automatically adjust speeds based on steering angle and lift height to ensure smooth, safe operation. Depending on the mast configuration, the Mast Tilt Control (MTC) system—reducing sway and enhancing stability—is available as standard or an option.

Built for durability, these trucks include easy-to-use displays, integrated diagnostics, and service-friendly access points to help lower maintenance time and costs. For even greater efficiency and reduced running expenses, a high-performance, long-lasting lithium-ion battery is available.

In addition to standard models, the range includes heavy-duty versions and an ‘X’ variant for intensive applications requiring lift heights up to 12.1 metres, with a variety of optional features to suit specific operational needs.

LOWER COST OF OWNERSHIP / SAFETY AND ERGONOMICS

• Robust construction minimises damage and wear, even in demanding multi-shift operations.
• Heavy duty drive wheel is highly durable and easy to maintain, with a larger diameter, extra width and unique tread design which increase grip and stability as well as lifetime
• User-friendly display encourages correct use of truck.
• PIN code identification and programmability prevent unauthorised use and allow matching of truck performance settings to driver experience and application.
• Easy battery access enables driver to make quick checks without leaving the truck.
• Fast service access to systems and components reduces downtime.
• Li-ion battery option adds even greater efficiency and runtime, along with minimal maintenance needs and much longer life, for lower long-term total cost of operation (TCO).

UNMATCHED PRODUCTIVITY

• Automatic drive speed reduction makes smooth adjustments according to steering angle and fork height to maintain stability, safety and confidence when cornering or carrying raised loads.
• Automatic hydraulic motion control optimises lift, lower, reach, tilt and side shift speeds according to lift height and keeps all movements smooth, quiet and precise.
• Mast Tilt Control (MTC) damping system reduces oscillations by up to 80%, allowing faster and more stable load handling. (Standard on tilting masts with lift heights above 7.25 m. Optional for other tilting masts.)
• Tilting mast reduces aisle width necessary and enhances safety of handling in lifts up to 10 m. (Not available on NR20N3HX, which has fork tilt instead.)
• 360-degree steering option enables fluid turning without stopping to change direction.
• Fast travel and lift speeds come as standard.
• High-performance option increases top speed from 12.5 to 14.5 km/h. (Not available on NR25N3H or NR20N3HX.)
• Motor-powered battery bed option enables exchanges in just one minute, for 24/7 productivity.
• Li-ion option enhances performance and permits fast opportunity charging for continuous operation without battery changes.
• 1070 mm inner width of support legs on NR16N3HS allows easier handling of 1000 x 1200 mm pallets or Euro pallets with sideways overhang.

SAFETY AND ERGONOMICS

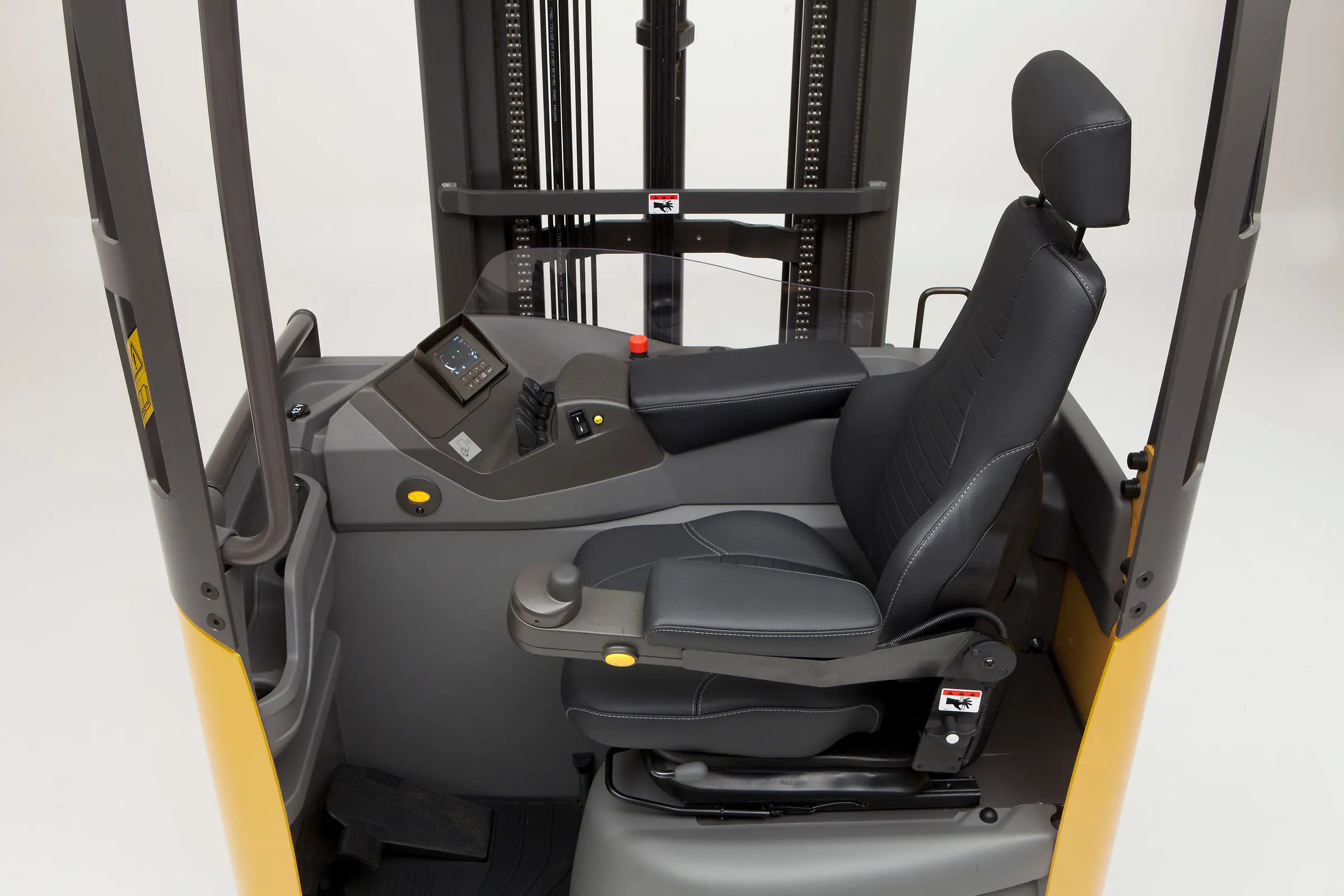

• Palm Steering on adjustable floating armrest offers relaxed driving position and operation with minimal movement, effort or strain – ideal if driver is seated for long periods.
• Multifunctional joystick with adjustable armrest fits hand perfectly, positions all hydraulic controls optimally, minimises effort and enables precise individual and simultaneous actions.
• Optional fingertip hydraulic controls with adjustable armrest ensure ergonomically perfect hand positioning, anatomical support and free movement.
• Electrically adjustable floor height combines with adjustment of armrests and seat to give the perfect fit for each driver.
• Tilting seat tips back by 18 degrees, to reduce strain when viewing and handling loads at height, and is adapted to the driver’s weight.
• Tapered seat backrest enables easier turning of body – with less strain – toward driving direction.
• Spacious driver’s compartment with high roof safely and comfortably accommodates users of all sizes.
• Excellent all-round view is enabled by design of mast, fork carriage, overhead bars, pillars and chassis, and by use of dark, non-reflective paint.

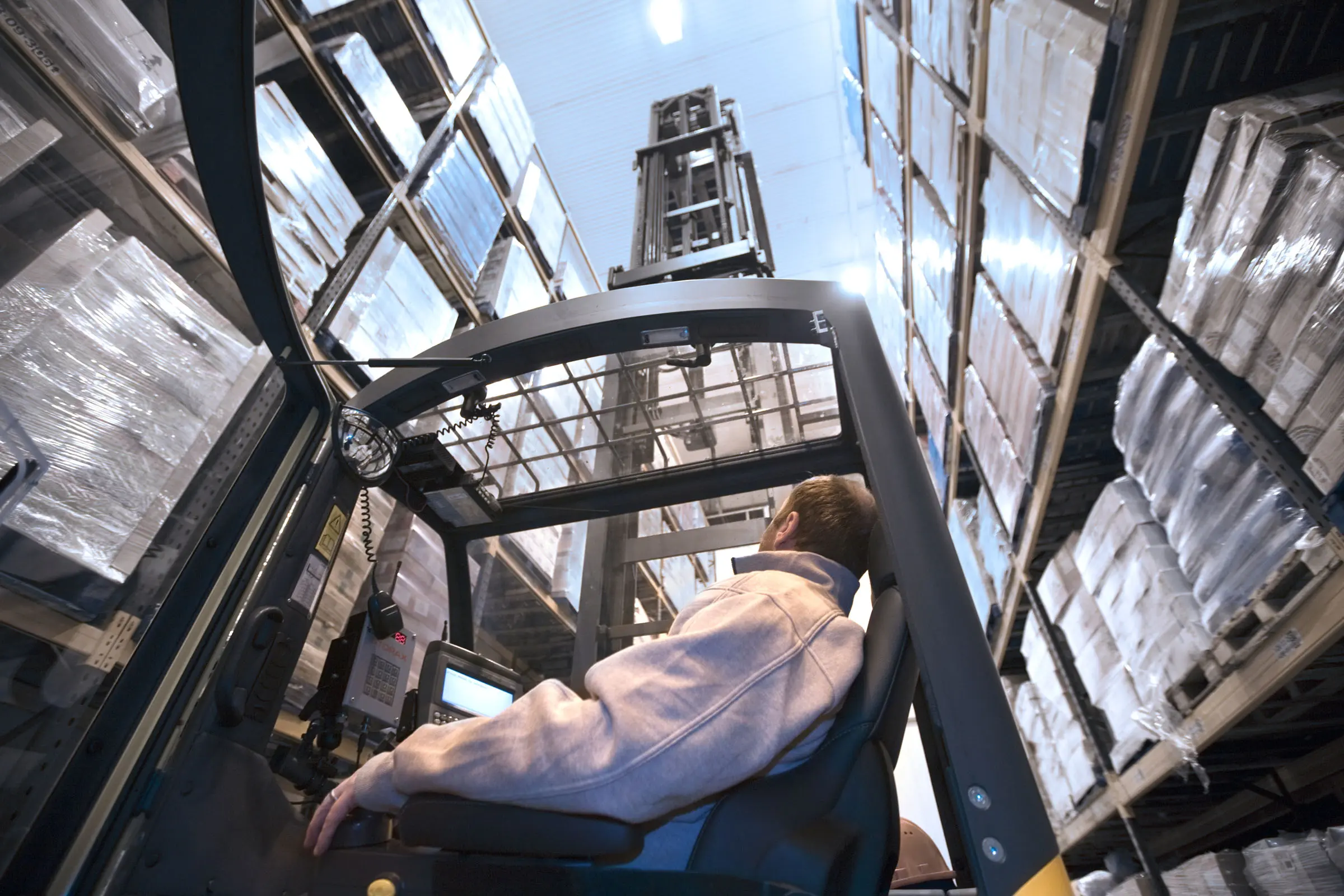

• Transparent overhead guard roof option gives unobstructed view of forks and load when handling at height and protects driver from both small and large falling objects.
• Intuitive display keeps drivers fully informed and is optimally positioned and angled for clear viewing.
• Direction control is switched using accelerator pedal, leaving right hand free to concentrate on hydraulic functions.
• Automotive pedal layout is intuitive to car drivers, while ‘dead man’ safety switch is effortlessly activated by the weight of the left foot.
• Smooth entry and exit are aided by ergonomic grab handles and low intermediate step with non-slip surface.
• Standard safety features include operator presence switch, mast lock system and automatic parking brake.
