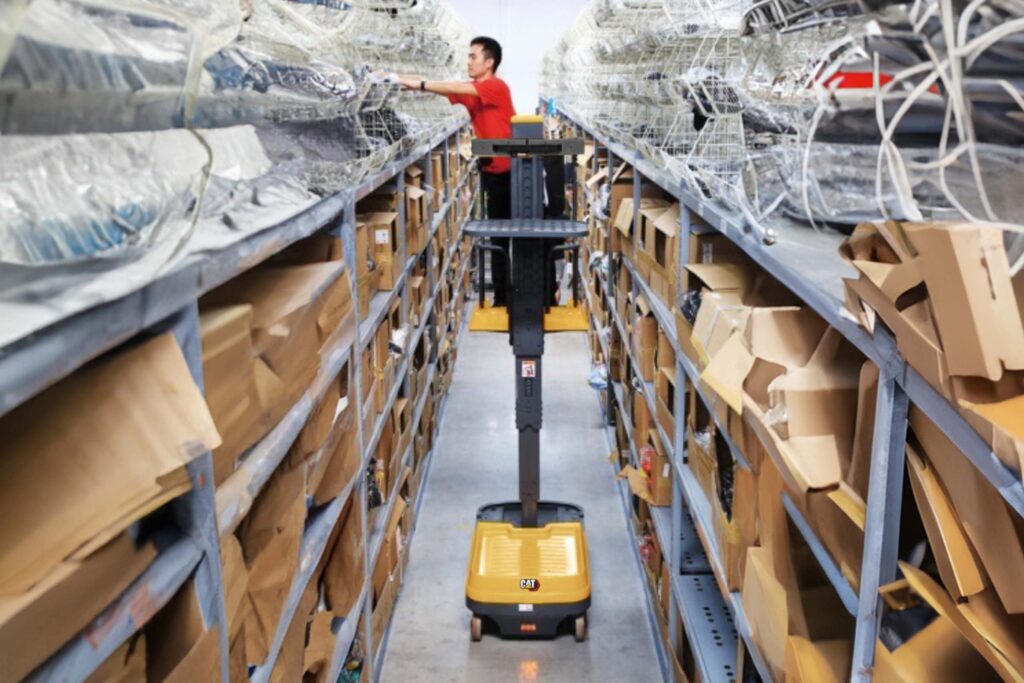

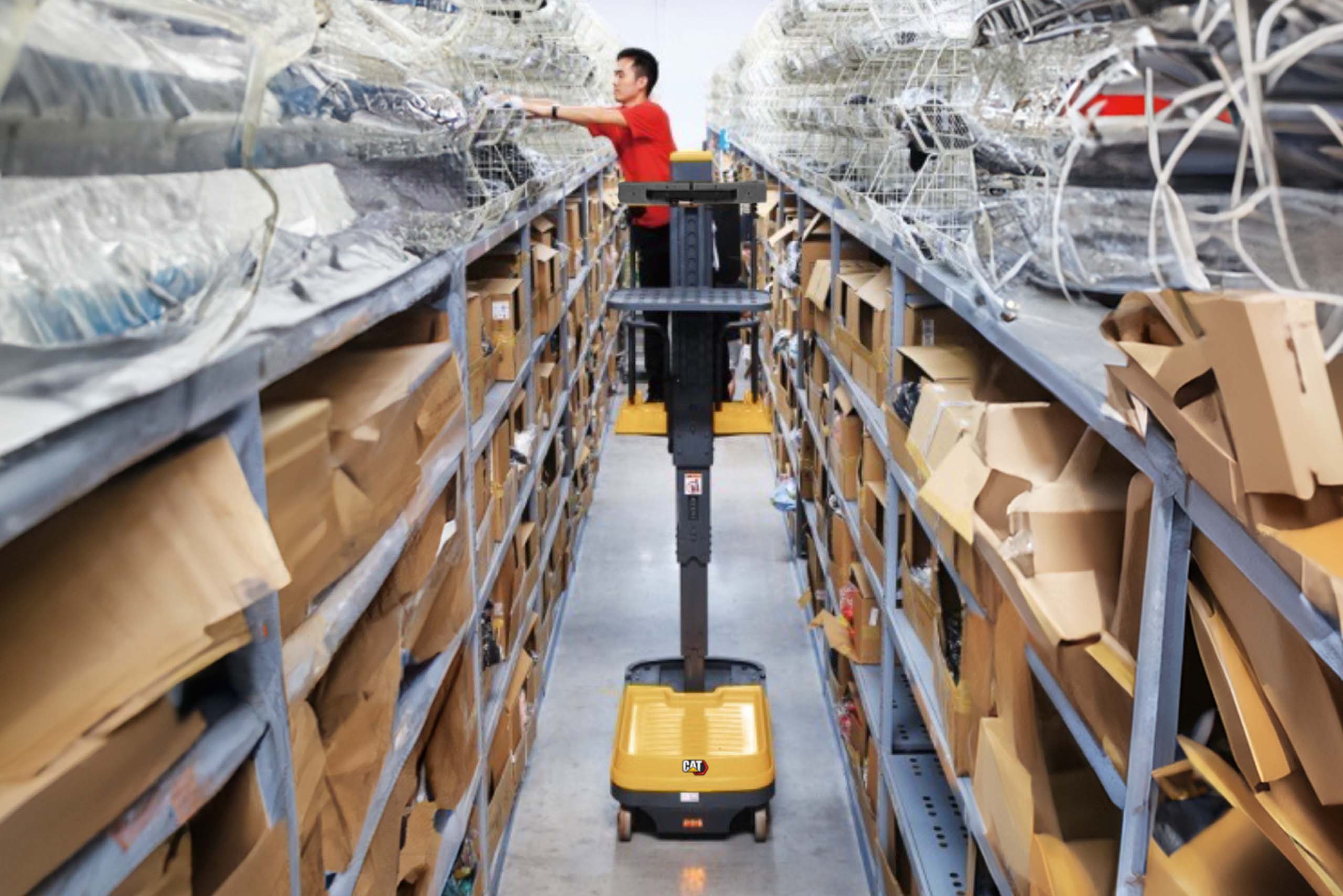

Thanks to its stable mast and chassis design, this order picker safely lifts the platform up to 3 metres, allowing users to reach heights of up to 5 metres. It can carry up to 90 kg on the load tray and 150 kg on the load dock, making it suitable for picking tasks across the 1st, 2nd, and 3rd racking levels, as well as for maintenance jobs like light bulb replacements or ceiling repairs. An optional towing feature also allows transport of extra loads using trailers. Safety is built-in, with automatic systems ensuring the truck only operates when hands and feet are correctly positioned and gates are closed, and with travel speed automatically adjusted based on platform height. Its responsive controls, compact design, and tight turning radius provide excellent manoeuvrability, while Li-ion battery power and minimal maintenance help maximise uptime.

LOWER COST OF OWNERSHIP

• High-quality, robust construction ensures reliable operation over a long lifetime, with minimal servicing and repair needs.

• AC drive motor promises a long service life with low maintenance needs, thanks to elimination of brushes and commutators.
• Regenerative braking increases battery runtime, by recycling energy, and extends brake component life.
• Li-ion batteries give maximum lifespan, efficiency and runtime, with no need for water top-ups or other maintenance.
• Plug-in diagnostics and troubleshooting require only a laptop, software and a cable – not an expensive handheld device – to reduce downtime and maintain efficient performance.
• Key switch helps avoid unauthorised use.

UNMATCHED PRODUCTIVITY

• Compact and stable design enables fast, safe performance with great manoeuvrability.
• Small footprint (750 mm wide) combines with easy steering for tight turns and flexible mobility in narrow aisles.
• Low height with mast collapsed aids passage through doorways.
• High lifting ability allows raising of platform up to 3 metres, enabling operator to reach heights up to 5 metres.
• 24V/100Ah high-capacity Li-ion battery gives powerful performance and long runtime between charges.
• Li-ion technology makes continuous operation possible, without battery changes, using fast opportunity charging during short breaks.
• Internal charger allows simple plugging in to any suitable electrical socket, wherever you are.
• BDI (battery discharge indicator) and hour meter support optimal timing of battery charging/changing.
• Towing device option adds extra versatility, allowing the truck to transport larger loads on trailers.
• Loading tray is positionally adjustable for convenience and has a see-through mesh construction for clear downward visibility and hence safety.
• Solid mast structure and stable chassis enable safe handling of loads at maximum lift heights.

SAFETY AND ERGONOMICS

• Safety gates prevent operator from falling from the truck.
• Automatic gate lock prevents lifting and travel if gates are open.
• Hand sensors ensure operator has both hands in place on the control handles before allowing lifting or travel.
• Operator presence sensor permits lifting/lowering and travel only if both feet are properly positioned on the platform.
• Safety harness anchor point can be used for further confidence.
• Automatic height-related travel speed reduction sets safe limits to ensure stability.
• Turtle/creep speed switch allows very slow, safe and tight manoeuvring in narrow spaces.
• Fingertip controls are simple to use and give precise, smooth adjustment of acceleration, lifting/lowering and steering.
• Emergency stop button and horn are easy to reach from the control handle.
• Amber safety lights increase truck visibility.
• Blue floor light option alerts pedestrians and other truck operators to the order picker’s presence.
• Work light option enhances vision in dark areas.
• Li-ion battery chemistry means no risk of hazardous gas or acid leaks.
