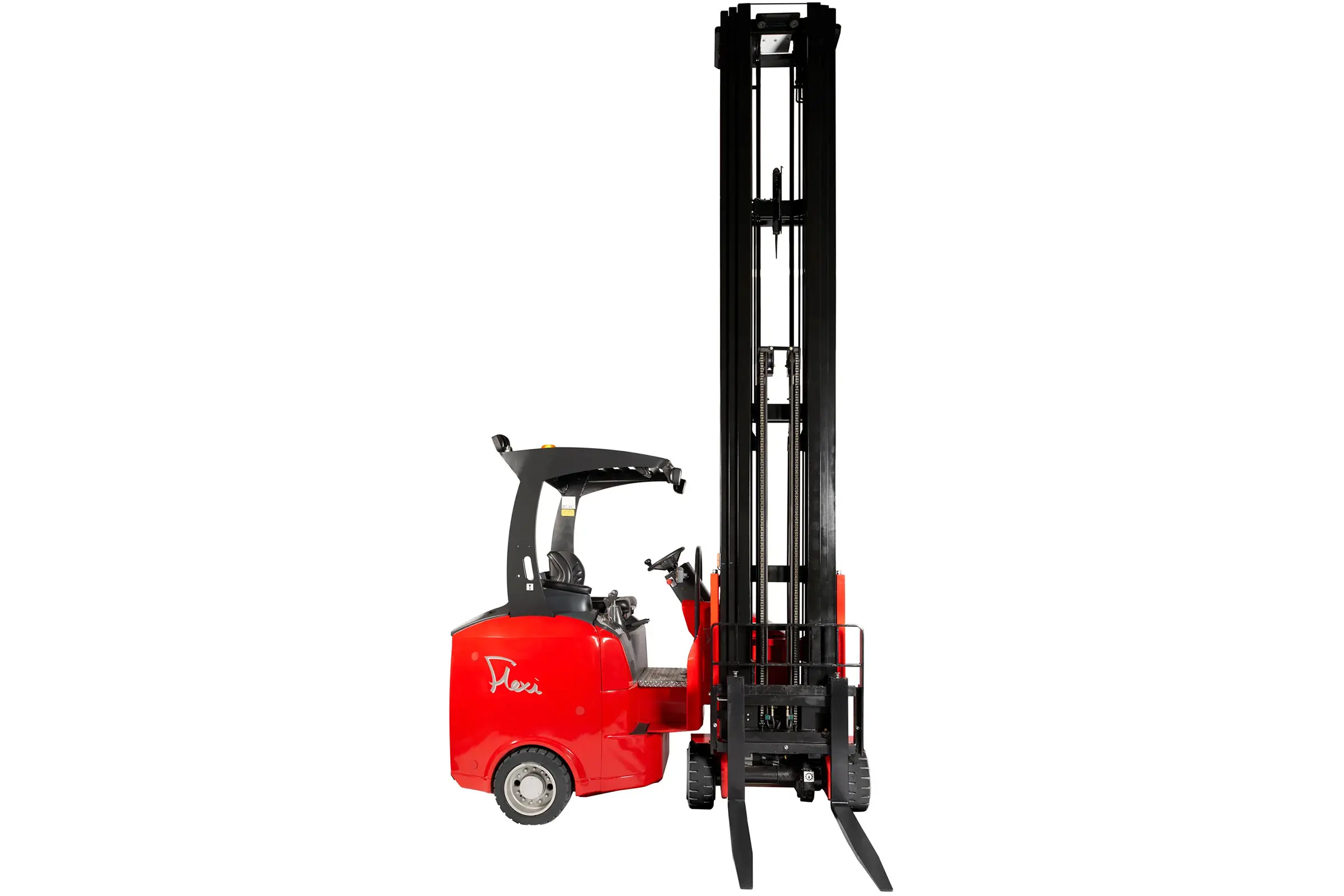

Advanced Narrow Aisle Forklift for High‑Density Warehousing

Superior Lateral Stability

Engineered with a robust 2.5‑tonne (5,000 lb) twin‑deck articulation system and a heavy‑duty 320 mm (13”) slewing ring bearing, this truck delivers outstanding lateral stability. The design supports smooth 220° articulation, enabling confident operation in the tightest aisle configurations.

Optimised for High‑Lift Performance

Built on a 2.5‑tonne chassis and equipped with elastic rubber rear tyres, the truck provides enhanced load support and ensures stability throughout lifts of over 13.0 m (512”), all without the need for floor-based guidance systems. Ideal for demanding, uneven, or mixed warehouse surfaces.

Reinforced Heavy‑Duty Mast

The strengthened space‑frame mast design integrates directly into the reinforced front frame, delivering reliable lift capacity and long-term structural durability. Perfect for intensive, high-throughput applications.

High‑Definition LCD Mast‑View CCTV

A clear, high-resolution LCD camera system helps operators place loads accurately at heights of over 11.5 m (453”), reducing fatigue and improving safety. An optional programmable height selector integrates seamlessly with the digital CANbus control system.

Designed for High‑Bay, High‑Density Storage

This model supports fast throughput and maximises storage space—ideal for modern logistics environments requiring efficient movement and high stacking.

Performance Engineered for Heavy Loads

• Capable of lifting ISO and Euro pallets up to 11.5 metres
• 8 kW digital power‑steering motor with low‑noise “whisper” pump for precise, energy‑efficient operation
• Double‑deck 2.5‑tonne articulation for outstanding mast stability
• 2‑tonne capacity at 600 mm load centres up to 3.3 metres

Energy‑Efficient, Low‑Maintenance Drive System

Featuring Zapi digital AC drive technology, the system minimises maintenance costs, extends operating time, and maximises battery life, supporting intensive multi‑shift operations.

Built for Industrial Environments

A heavy‑duty chassis makes this truck ideal for operations aiming to increase pallet throughput while reducing floor space.

Flexible chassis width options, allowing operators to match lift height and load requirements

• 1250 mm
• 1350 mm
• 1400 mm

Safety as Standard

• HiViS heavy‑duty mast for improved visibility
• Unique twin‑post HiViS safety head guard, exceeding CE and US safety regulations
• Independent 1.8 kW hydraulic power‑steering unit for smoother, quieter, energy‑efficient manoeuvring

Why Choose This Model?

This advanced narrow‑aisle solution brings together exceptional stability, high lift capacity, and energy‑efficient performance, making it the perfect choice for industries operating high‑bay, high‑density storage systems.
