Laden container handlers

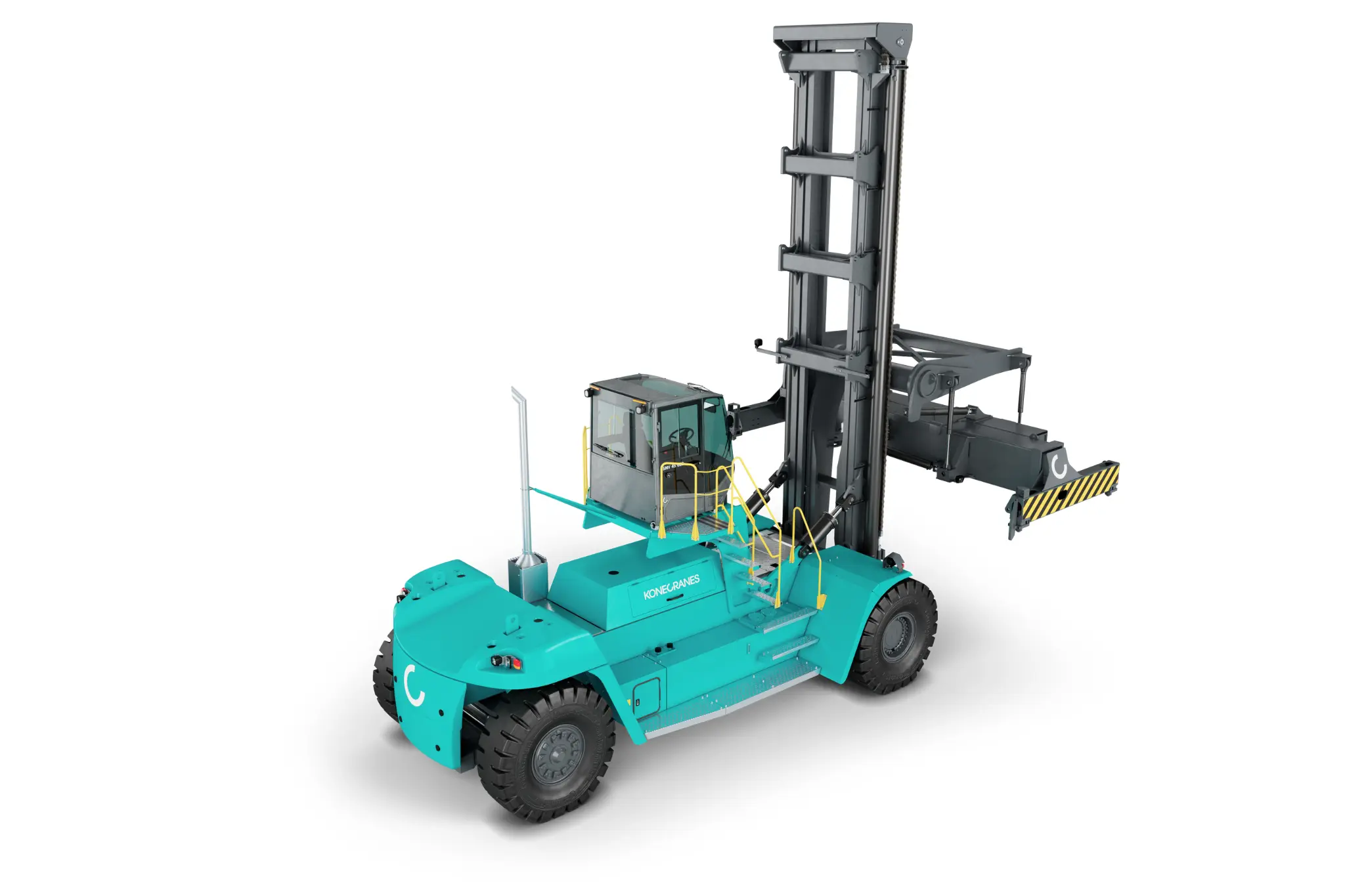

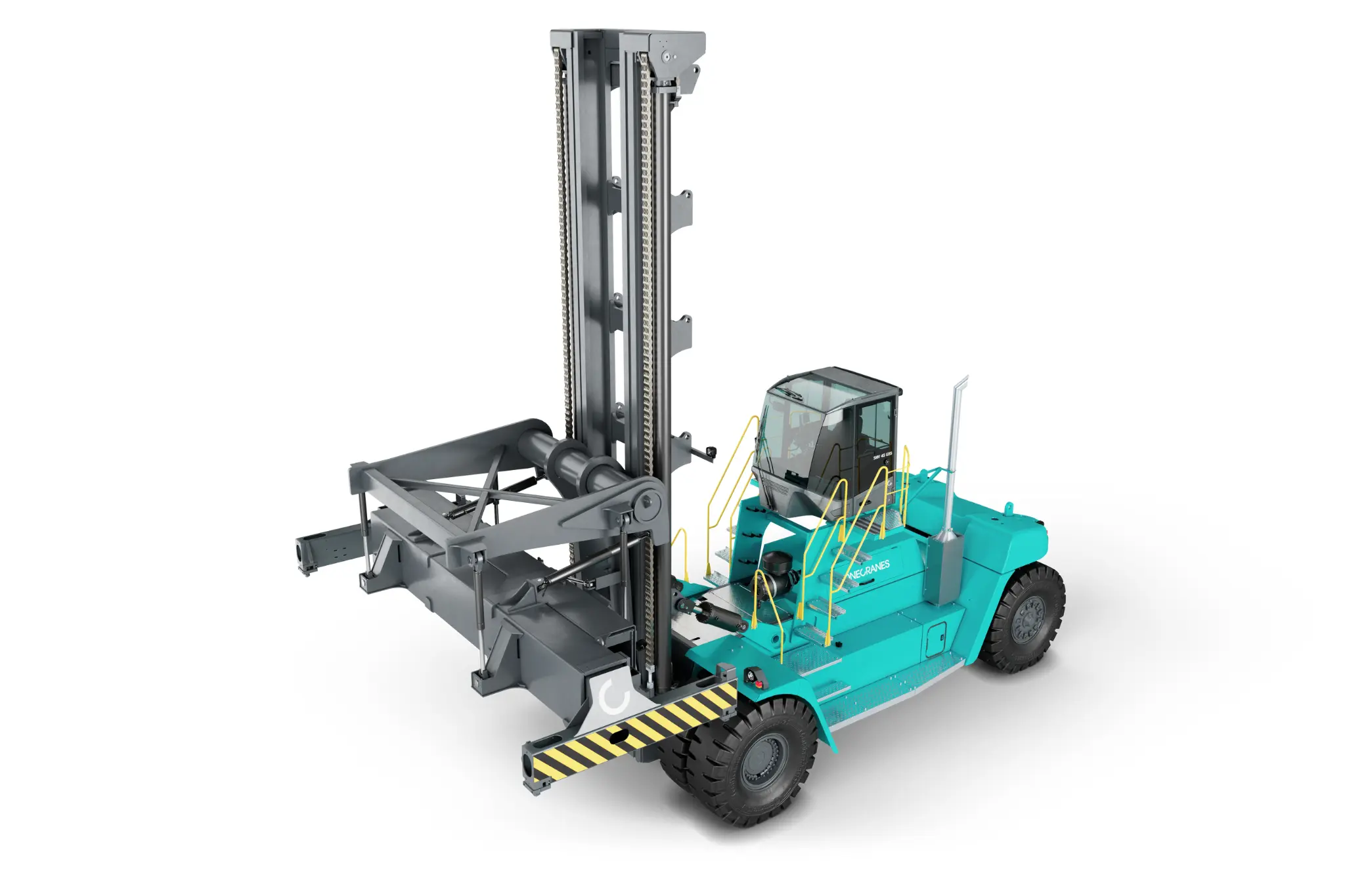

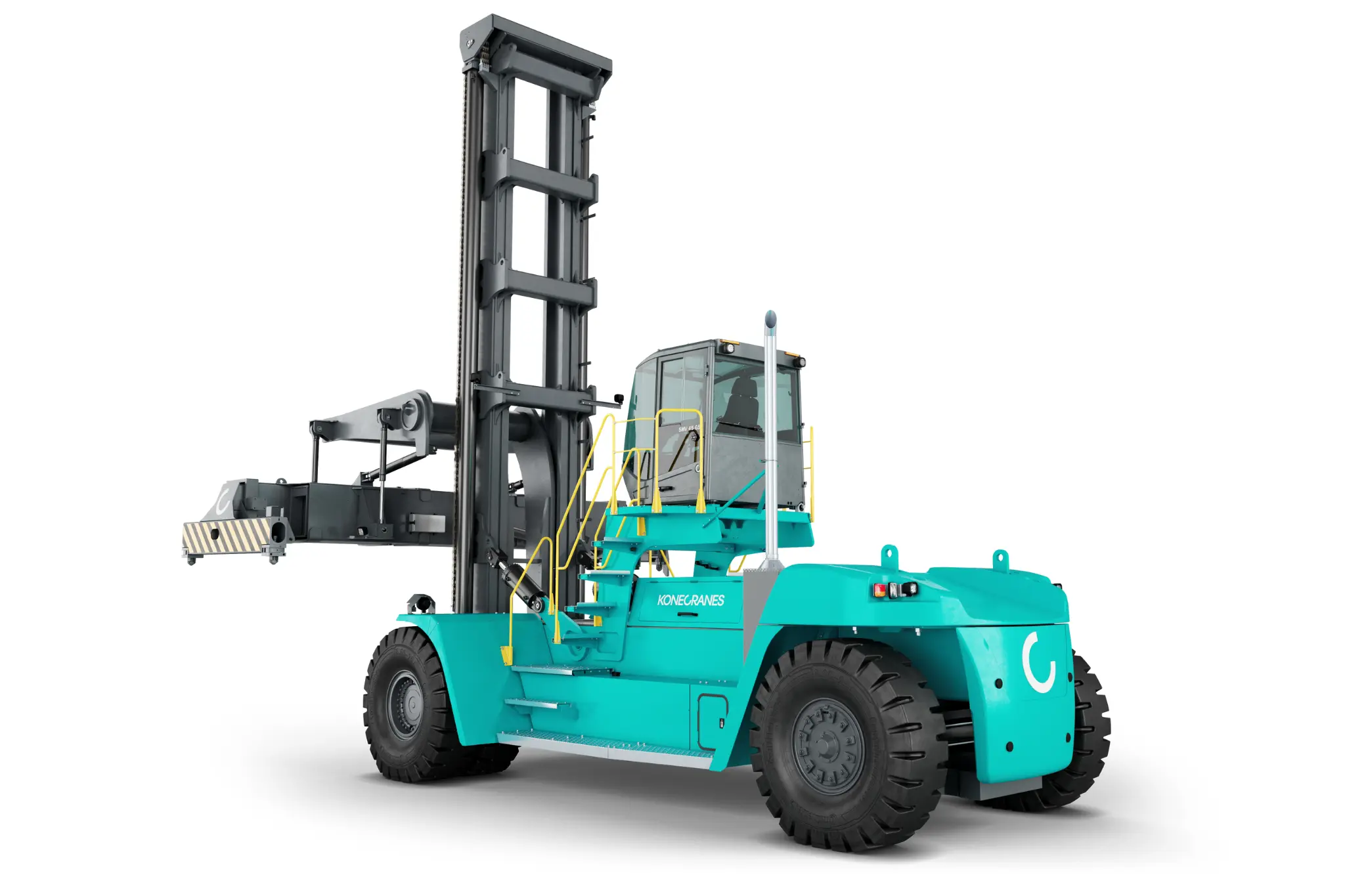

Konecranes Laden Container Handler
26 - 52 Tonnes
Diesel
Built for your world
Engineered for precision and efficiency, these laden container handlers combine a compact, high-capacity design with smart technologies that reduce wear and extend lifespan, lowering overall operating costs.
Read more
| Model | Capacity | Wheelbase |
|---|---|---|
| SMV 33 G3-G4 | 30/26 tonnes at 1490/1730 mm | 4750 mm |
| SMV 37 G3-G4 | 35/33 tonnes at 1490/1730 mm | 5000 mm |
| SMV 45 G3-G4 | 43/41 tonnes at 1490/1730 mm | 5500 mm |
| SMV 52 G3-G4 | 45/43 tonnes at 1490/1730 mm | 6000 mm |
| SMV 34 G4S | 35/33 tonnes at 1490/1730 mm | 5000 mm |
| SMV 45 G4S-G5S | 42/41 tonnes at 1490/1730 mm | 5500 mm |
| SMV 52 G4S-G5S | 45/43 tonnes at 1490/1730 mm | 6000 mm |
| SMV 52 GC6R | 38.5 tonnes at 1490 mm / 36.3 t at 1730 mm | 6000 mm |
Product Description
Konecranes Laden Container Handlers range from 26 – 52 tonnes and need to be moved with the right balance of efficiency and precision within the container handling process. The ratio of lifting capacity to truck size and length is best-in-class and we offer a range of solutions and technologies to reduce engine, drive train and tyre wear which not only extends the life of your laden container handler but also lowers your total cost of operation.
Key Features
SINGLE STACKING SPREADER
Toplift handling of 20–40 ft containers, 45–53 ft containers are lifted in 40 ft position with the 4 twistlocks. There are 4 lift eyes for sling cargo, large sideshift, reach in & out, slew left & right, and mechanical pile slope. Large sideshift, mechanical pile slope, and optional hydraulic pile slope.
OUTSTANDING ERGONOMICS
With driver-focused design, the OPTIMA cabin is one of the most spacious on the market. Everything is within easy reach.
CURVED GLASS GIVES REMARKABLE VISIBILITY
Drivers have an exceptional range of vision through very large, lowered windows with no corner posts, a thin but very strong roof crossmember, and curved panels.
HEAVY-DUTY BOX-TYPE CHASSIS
The strongest on the market. The foundation of long-lasting high performance.
RELIABLE LIFTING
Lift masts adapted for laden container handling. Hoses and cables kept to a minimum for low maintenance costs and maximum uptime.
EXCELLENT STABILITY
Wide drive axle and long wheelbase: the two keys to excellent stability.
POWERFUL ENGINE
A certified low-emission engine provides extra-high torque at low revs for reduced fuel consumption, driveline adjustments improve efficiency still further and HVO100 biofuel minimises emissions.
MAINTENANCE-FREE
Brakes with continuous oil cooling provide full braking power in every situation.
If you need help selecting a brand or model, get in touch.
