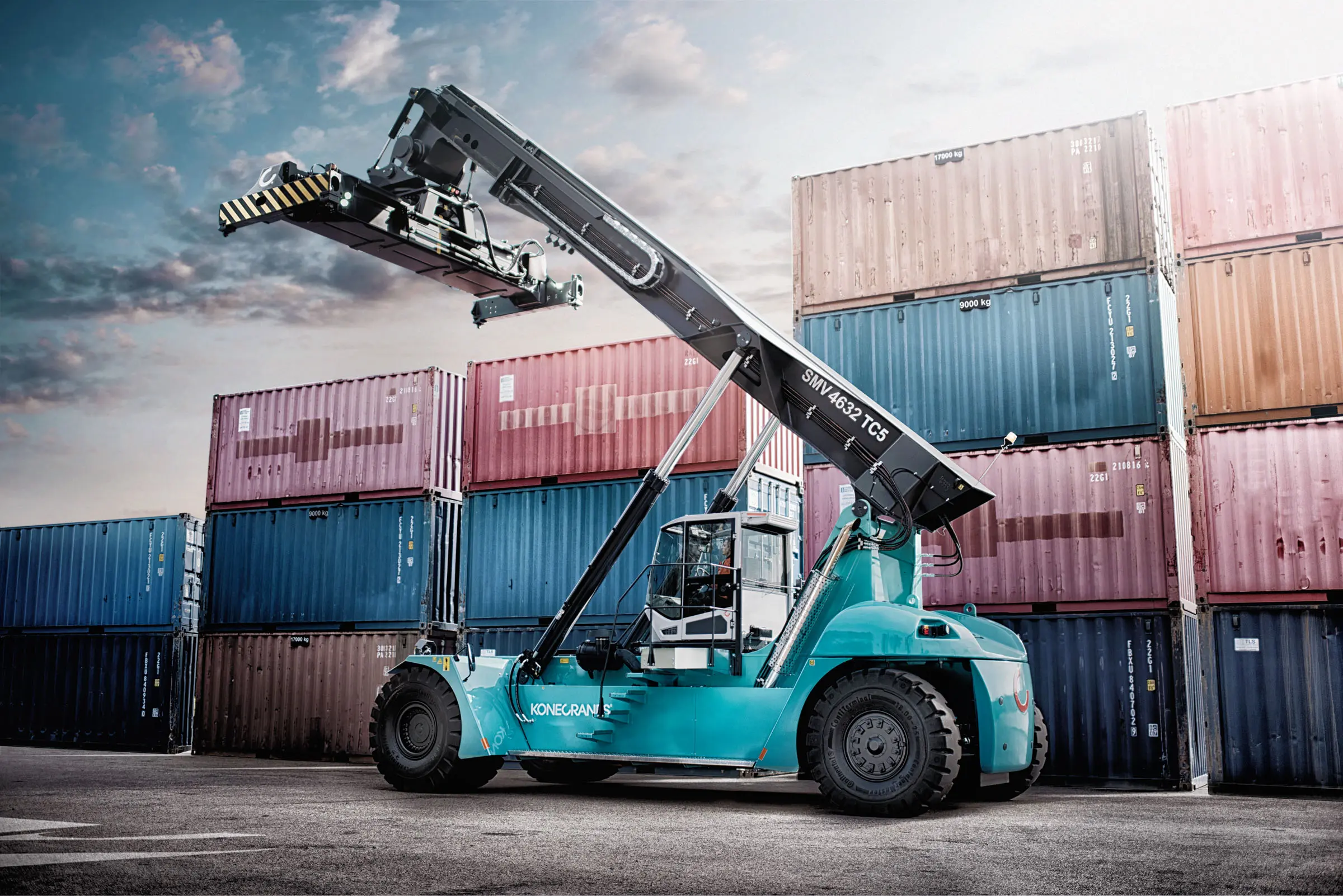

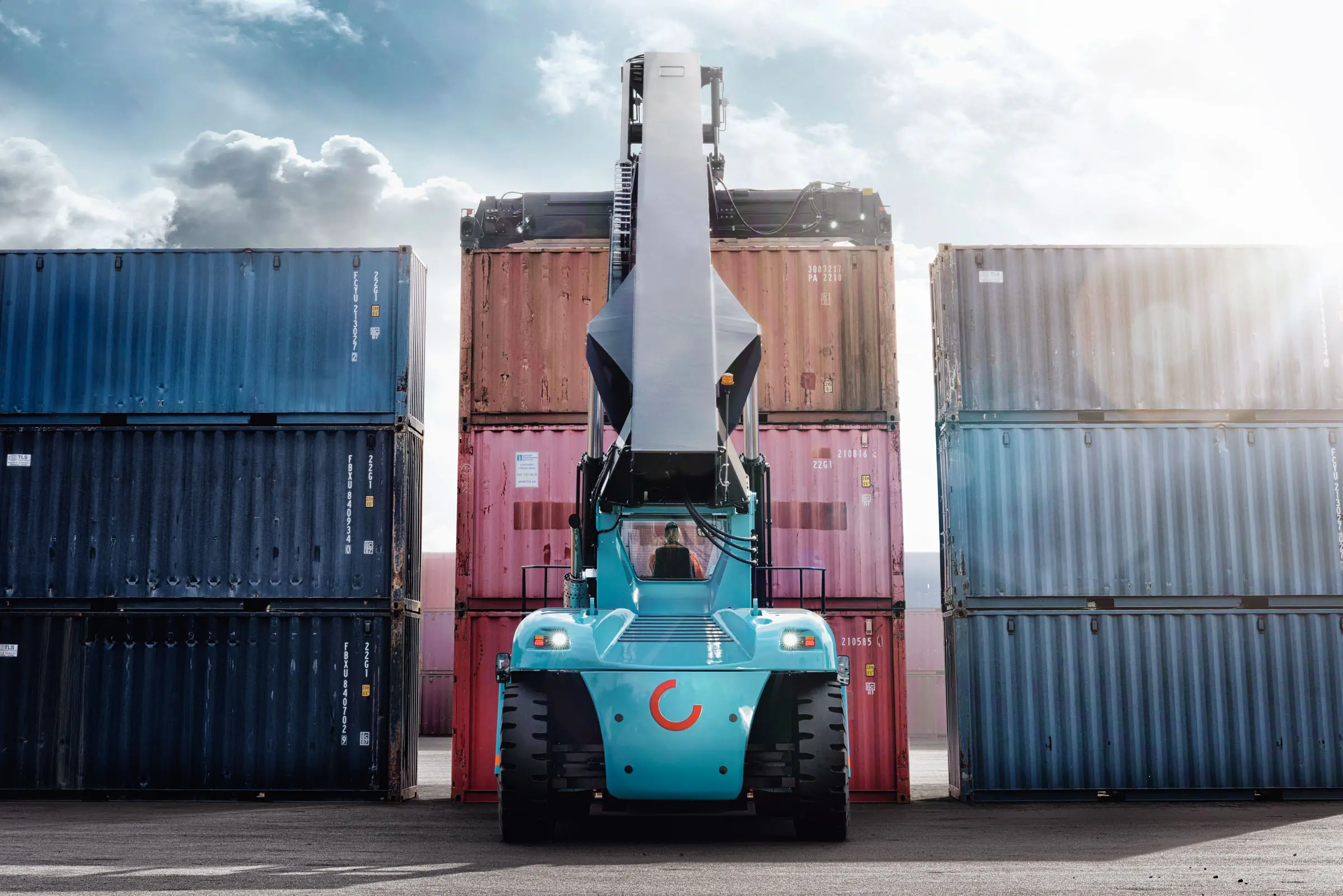

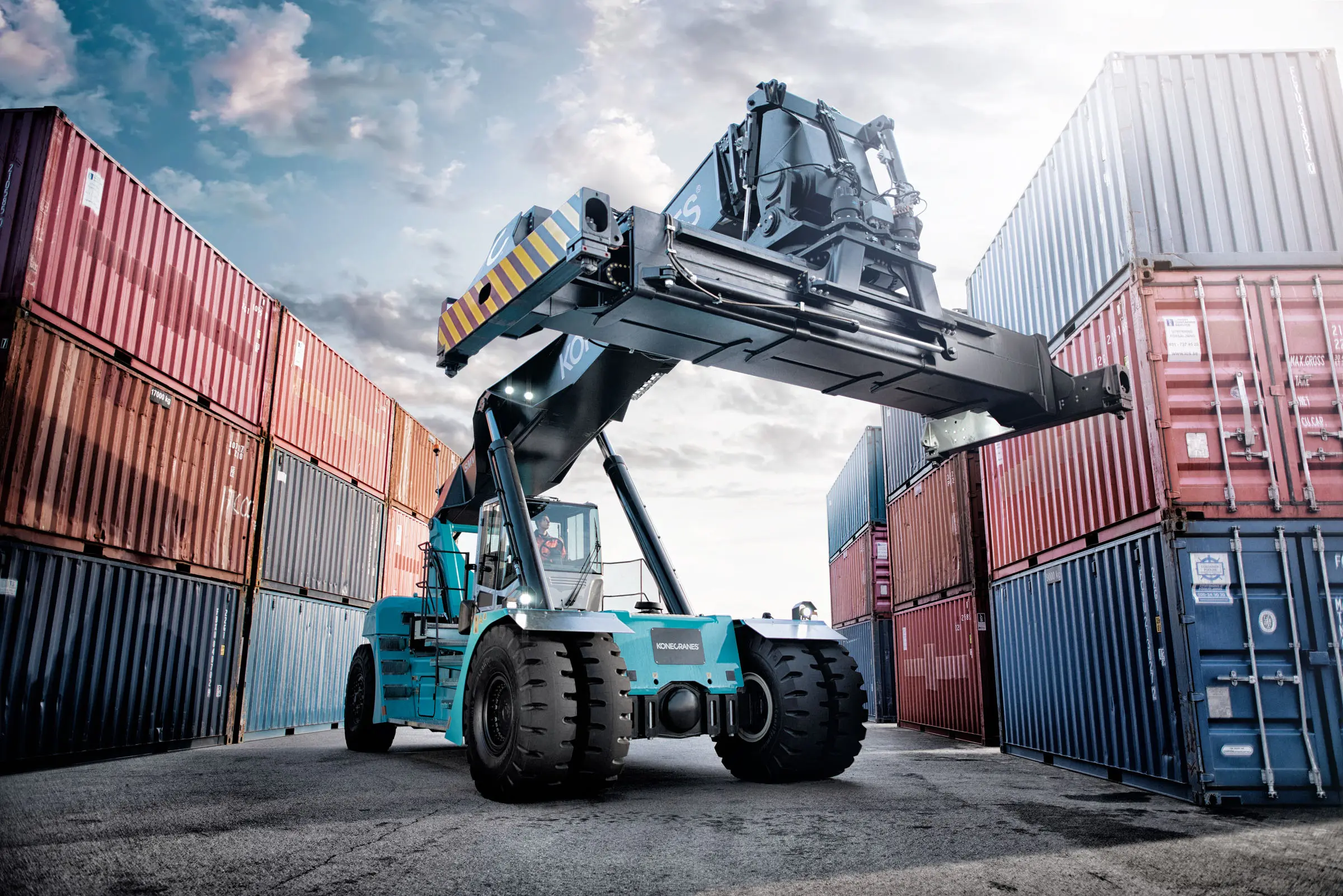

Konecranes Lift Trucks provides a comprehensive selection of reach stackers specifically designed for intermodal container handling. These machines are known for their adaptability and high performance, making them a preferred choice among top intermodal logistics providers globally.

Engineered for strength and stability, these reach stackers can efficiently lift containers across up to three rows of rail tracks or road lanes. Built with a long wheelbase and high load capacity, they offer excellent manoeuvrability and are surprisingly smooth and intuitive to operate—boosting both driver comfort and overall productivity.

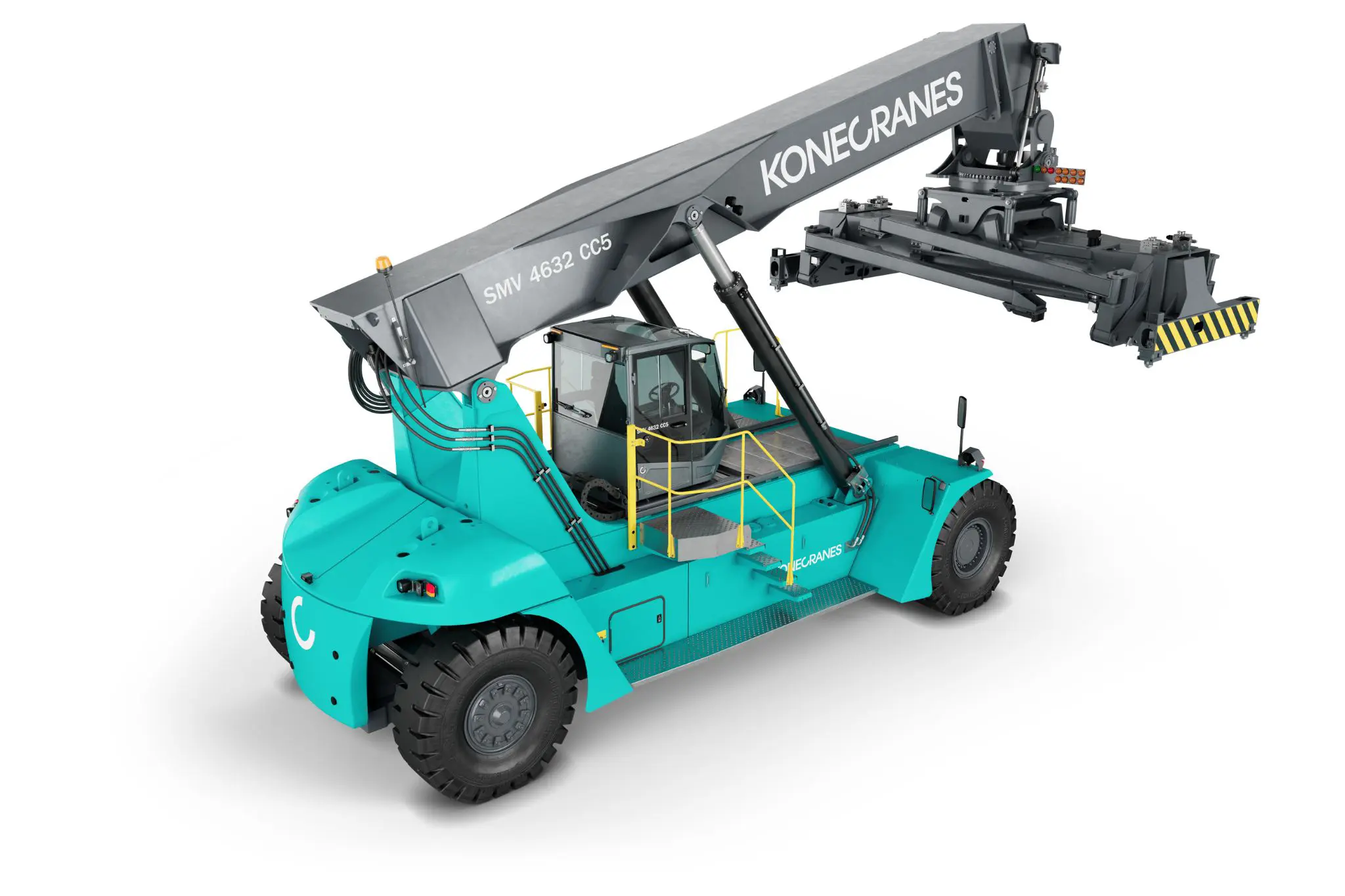

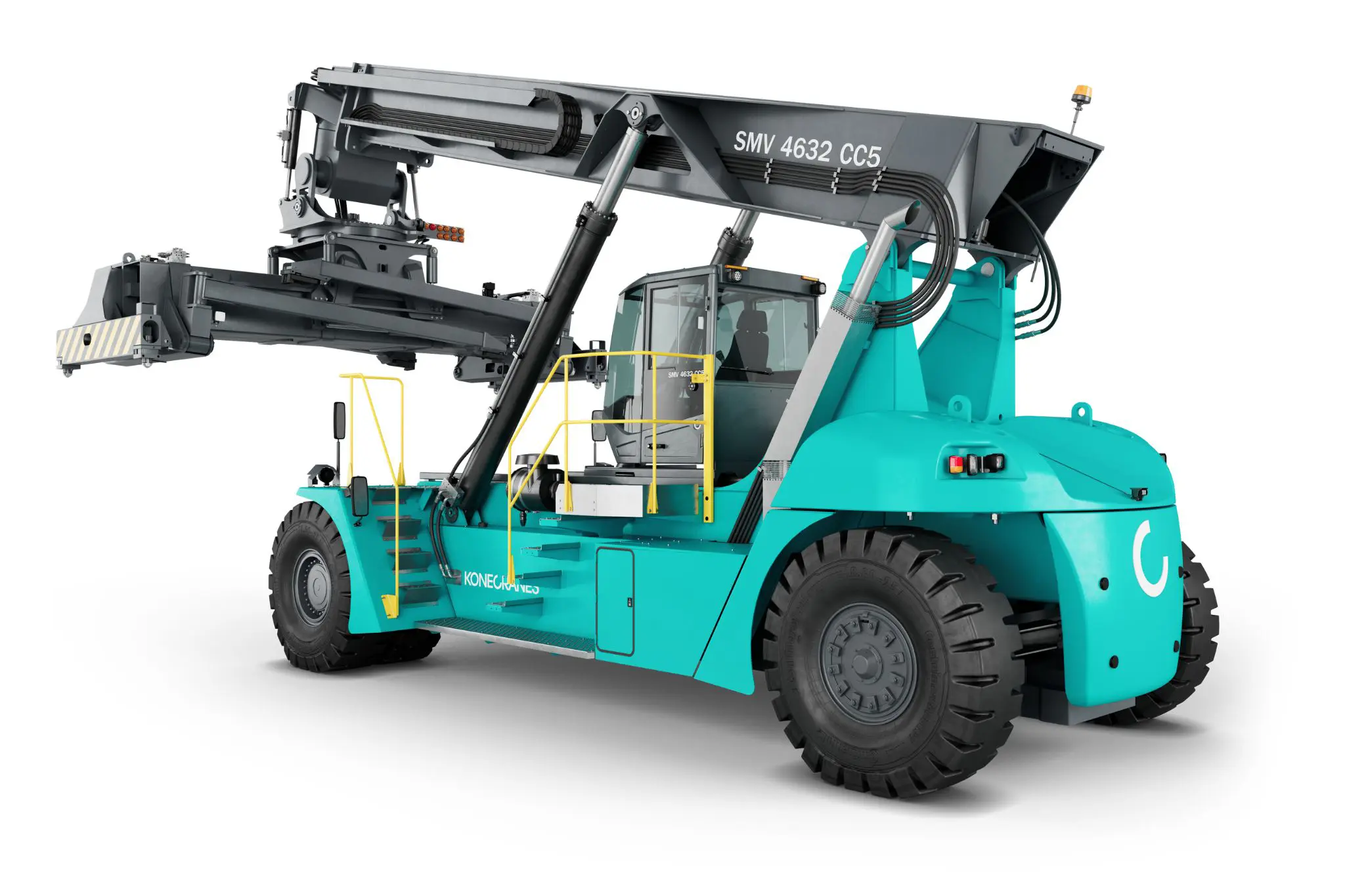

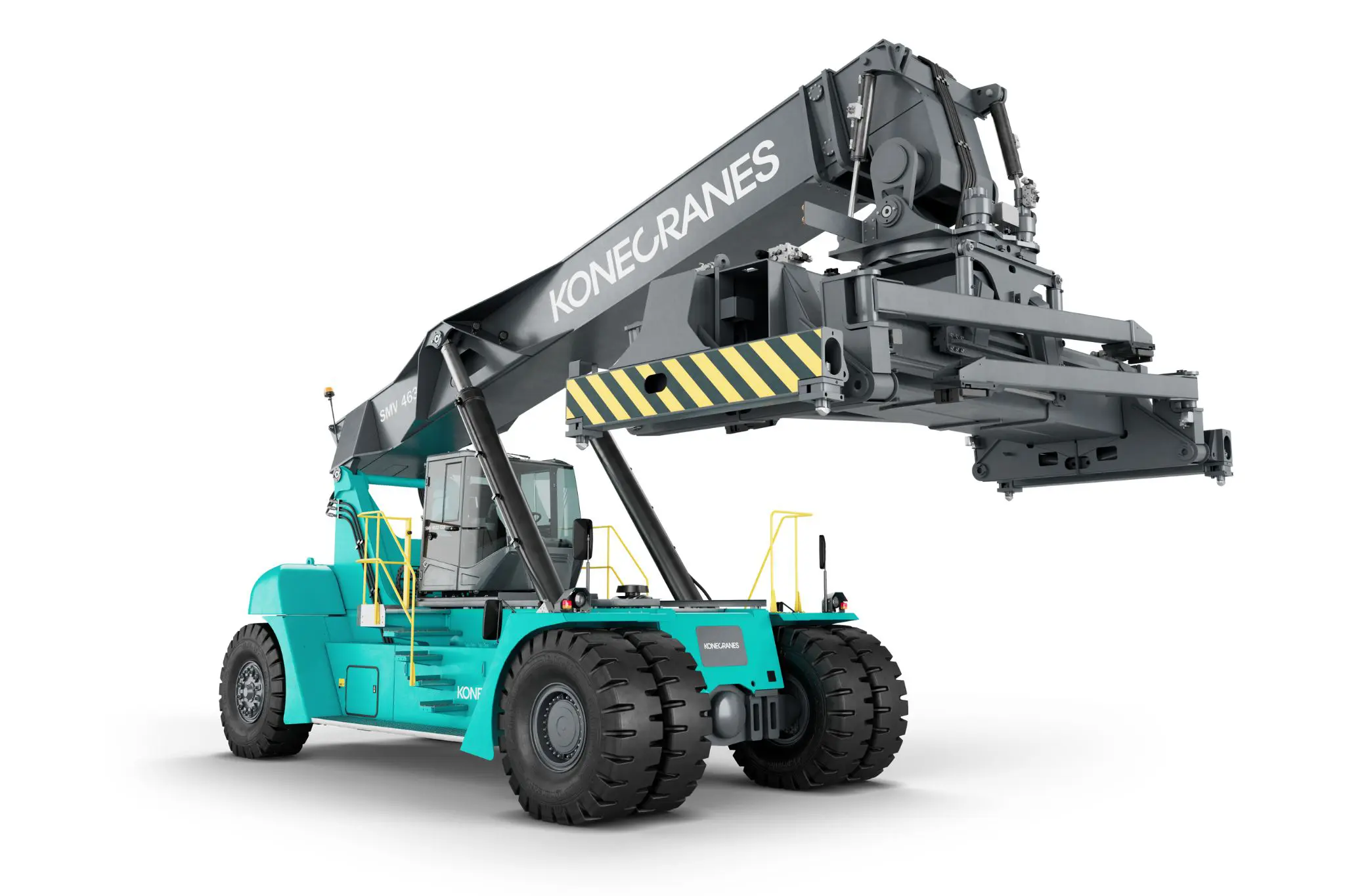

With lifting capacities ranging from 42 to 46 tonnes, the Konecranes intermodal reach stacker line-up is highly versatile. Customers can customise their equipment with a variety of features, including fuel-efficient engines, specialised spreaders, and adjustable cabins. Additional options such as remote operation, enhanced stacking capabilities, and electronic weight monitoring systems help optimise performance and ensure safe handling.

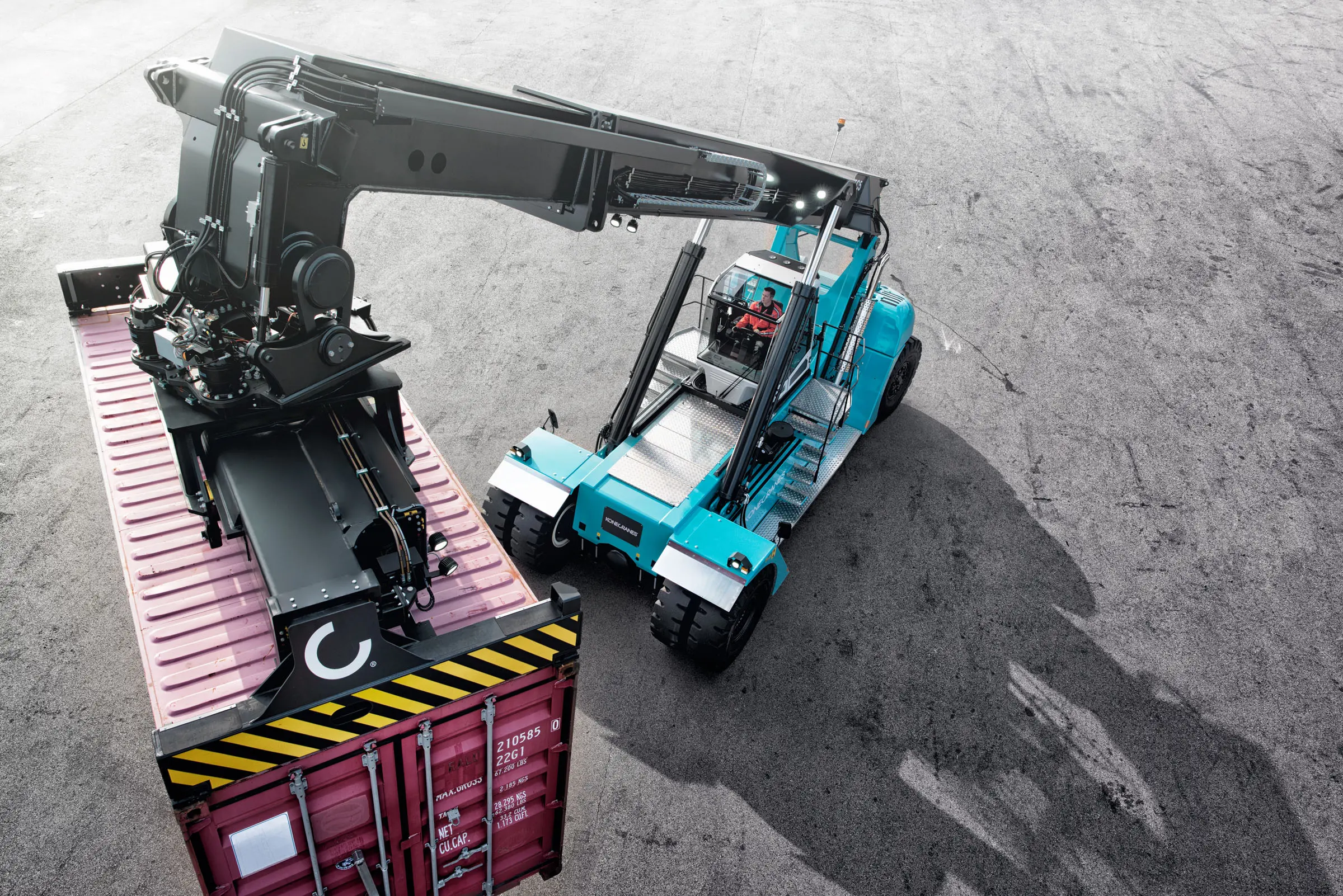

IMPRESSIVE SPREADER

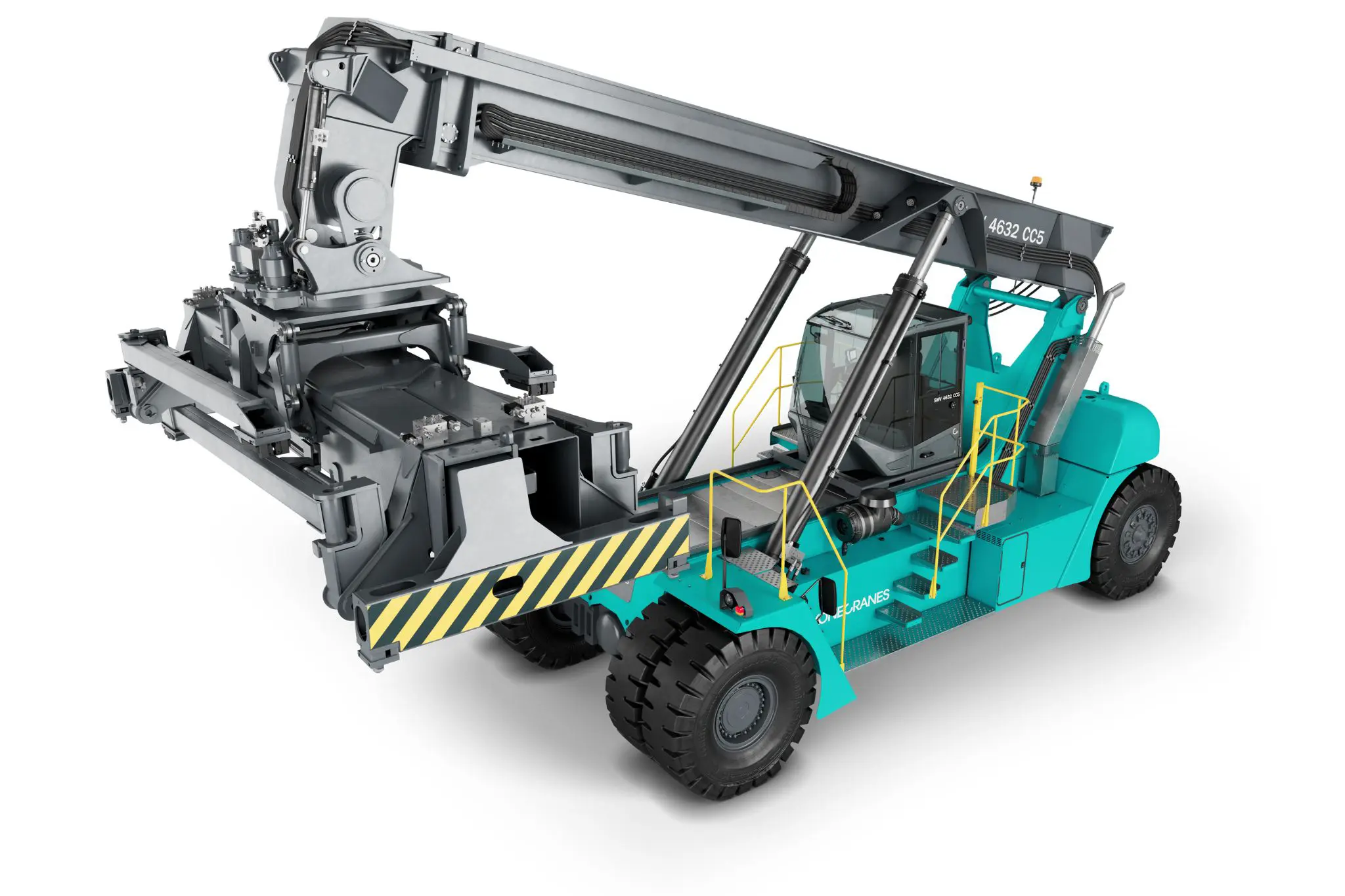

Suits 20/40/53 ft containers, 300 degrees rotation, 1600 mm total sideshift, 4 lift eyes for sling cargo. MPS mechanical (±2 deg) or HPS hydraulic pile slope (±6 deg). The combi spreader (Konecranes reach stacker only) can also lift trailers and swap bodies with 4 folding lift legs.

OUTSTANDING ERGONOMICS

With driver-focused design, the OPTIMA cabin is one of the most spacious on the market. Everything is within easy reach.

CURVED GLASS GIVES REMARKABLE VISIBILITY

Drivers have an exceptional range of vision through very large, lowered windows with no corner posts, a thin but very strong roof crossmember, and curved panels.

ELECTRONIC MACHINE CONTROL, EMC MASTER

You can monitor vital components and functions on a 7″ touch screen. CanBus technology increases engine and transmission reliability as well as hydraulic and joystick control.

SMART LOAD-SENSING HYDRAULICS

Specially designed hydraulics sense the weight of the load and adapt lifting power accordingly. The truck provides maximum power only when really needed, so it consumes less fuel while reducing emissions and noise.

ECO-EFFICIENT ENGINE

A certified low-emission engine provides extra-high torque at low revs for reduced fuel consumption, driveline adjustments improve efficiency still further and HVO100 biofuel minimises emissions.
